ME1117A25 - 1.0A Adjustable Voltage High Speed LDO Regulators

Product Overview

Microne

Datasheet Details

Part number	ME1117A25
Manufacturer	Microne
File Size	743.92 KB
Description	1.0A Adjustable Voltage High Speed LDO Regulators
Datasheet	ME1117A25 Datasheet
Note	This datasheet PDF includes multiple part numbers: ME1117A25, ME1117. Please refer to the document for exact specifications by model.

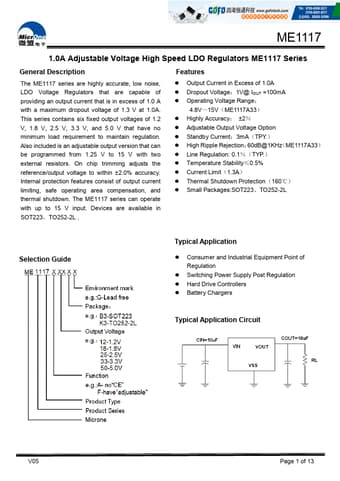

Additional preview pages of the ME1117A25 datasheet.

Product details

Description

The ME1117 series are highly accurate, low noise, LDO Voltage Regulators that are capable of providing an output current that is in excess of 1.0 A with a maximum dropout voltage of 1.3 V at 1.0A.

Features

consist of output current limiting, safe operating area compensation, and thermal shutdown. The ME1117 series can operate with up to 15 V input. Devices are available in SOT223，TO252-2L . Features.
Output Current in Excess of 1.0A Dropout Voltage：1V@ IOUT =100mA Operating Voltage Range： 4.8V～15V（ME1117A33） Highly Accuracy： ±2％ Adjustable Output Voltage Option Standby Current：3mA（TPY. ） High Ripple Rejection： 60dB@1KHz （ME1117.
