4N23 Datasheet - Micropac Industries

JAN/ JANTX/ JANTXV/ SINGLE CHANNEL OPTOCOUPLERS

4N23 Features

* Overall current gain1.5 typical (4N24) Base lead provided for conventional transistor biasing Rugged package High gain, high voltage transistor +1kV electrical isolation Applications:

* Eliminate grou

4N23 General Description

Gallium Aluminum Arsenide (GaAlAs) infrared LED and a high gain N-P-N silicon phototransistor packaged in a hermetically sealed metal case. The 4N22, 4N23 and 4N24’s can be tested to customer specifications, as well as to MIL-PRF-19500 JAN, JANS, JANTX and JANTXV quality levels. *ABSOLUTE MAXIM.

4N23 Datasheet (94.23 KB)

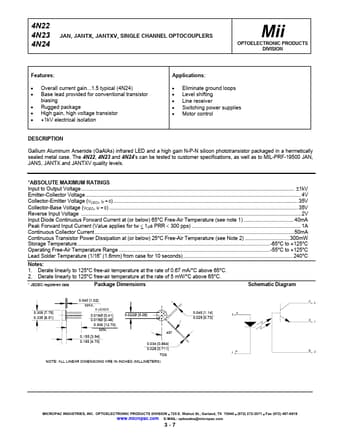

4N23 Datasheet Preview — Preview of 4N23 PDF

Datasheet Details

Part number:

4N23

Manufacturer:

Micropac Industries

File Size:

94.23 KB

Description:

Jan/ jantx/ jantxv/ single channel optocouplers.
