JANTXV4N49, JAN/ JANTX/ JANTXV/ SINGLE CHANNEL OPTOCOUPLERS

Gallium Aluminum Arsenide (GaAlAs) infrared LED and a high gain N-P-N silicon phototransistor packaged in a hermetically sealed TO-5 metal can. The 4N47, 4N48 and 4N49’s can be tested to customer specifications, as well as to MIL-PRF-19500 JAN, JANTX, JANTXV and JANS quality levels. *ABSOLUTE M.

JANTXV4N49_MicropacIndustries.pdf

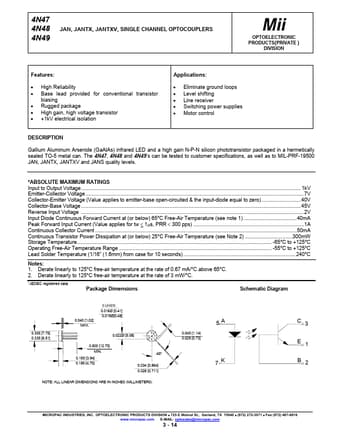

JANTXV4N49 Datasheet Preview — Preview of JANTXV4N49 PDF

Datasheet Details

Part number:

JANTXV4N49

Manufacturer:

Micropac Industries

File Size:

91.63 KB

Description:

JAN/ JANTX/ JANTXV/ SINGLE CHANNEL OPTOCOUPLERS

JANTXV4N49 Features

* High Reliability Base lead provided for conventional transistor biasing Rugged package High gain, high voltage transistor +1kV electrical isolation Applications:

* Eliminate ground loops Level shiftin
