1N3043B, 1N3016B, 1 WATT METAL CASE ZENER DIODES

This well established zener diode series for the 1N3016 thru 1N3051 JEDEC registration in the metal case DO-13 package provides a glass hermetic seal for 6.8 to 200 volts. It is also well suited for high-reliability applications where it is available in JAN, JANTX, and JANTXV military qualifications.

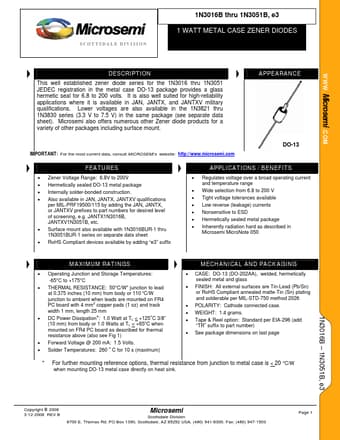

Datasheet Preview Page 1

1N3016B-Microsemi.pdf

This datasheet PDF includes multiple part numbers: 1N3043B, 1N3016B. Please refer to the document for exact specifications by model.
1N3043B Datasheet Preview Page 2 1N3043B Datasheet Preview Page 3

Datasheet Details

Part number:

1N3043B, 1N3016B

Manufacturer:

Microsemi ↗

File Size:

115.94 KB

Description:

1 WATT METAL CASE ZENER DIODES

Note:

This datasheet PDF includes multiple part numbers: 1N3043B, 1N3016B.
Please refer to the document for exact specifications by model.

1N3043B Features

* Zener Voltage Range: 6.8V to 200V

* Hermetically sealed DO-13 metal package

* Internally solder-bonded construction.

* Also available in JAN, JANTX, JANTXV qualifications per MIL-PRF19500/115 by adding the JA
