1N4688, 1N4678, 500mW AXIAL-LEADED ZENER DIODES

The 1N4678 thru 1N4717 series of 0.5 watt Zener Voltage Regulators provides a selection from 1.8 to 43 volts in standard 5% tolerances as well as tighter tolerances identified by different suffix letters on the part number. These glass axial-leaded DO-7 Zeners also have an internal-metallurgicalbond.

1N4678-Microsemi.pdf

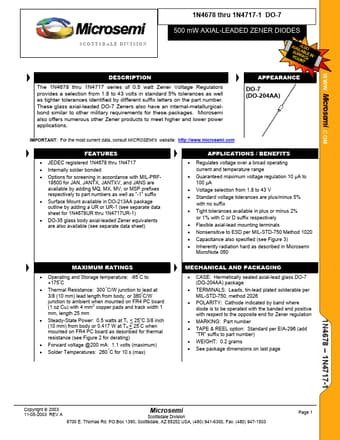

1N4688 Datasheet Preview — This datasheet PDF includes multiple part numbers: 1N4688, 1N4678. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

1N4688, 1N4678

Manufacturer:

Microsemi ↗

File Size:

189.90 KB

Description:

500mW AXIAL-LEADED ZENER DIODES

Note:

This datasheet PDF includes multiple part numbers: 1N4688, 1N4678.
Please refer to the document for exact specifications by model.

1N4688 Features

* JEDEC registered 1N4678 thru 1N4717

* Internally solder bonded

* Options for screening in accordance with MIL-PRF19500 for JAN, JANTX, JANTXV, and JANS are available by adding MQ, MX, MV, or MSP prefixes respectively to part numbers as well as “-1” suffix

* Surface
