1N5247UR, 1N5221UR Datasheet - Microsemi

1N5247UR, 1N5221UR, 500mW GLASS SURFACE MOUNT ZENER DIODES

The 1N5221BUR thru 1N5281BUR series of 0.5 watt Zener Voltage Regulators provides a surface mount equivalent to the popular JEDEC registered 1N5221B to 1N5281B for 2.4 to 200 volts in standard 5% tolerances as well as tighter tolerances identified by different suffix letters on the part number. Thes.

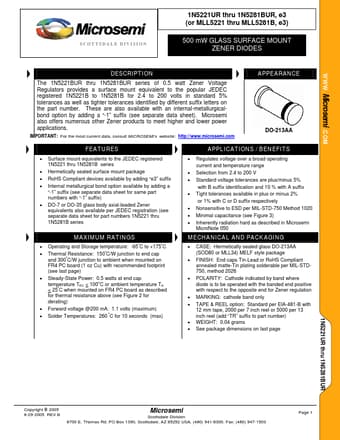

Datasheet Preview Page 1

1N5221UR-Microsemi.pdf

This datasheet PDF includes multiple part numbers: 1N5247UR, 1N5221UR. Please refer to the document for exact specifications by model.
1N5247UR Datasheet Preview Page 2 1N5247UR Datasheet Preview Page 3

Datasheet Details

Part number:

1N5247UR, 1N5221UR

Manufacturer:

Microsemi ↗

File Size:

98.22 KB

Description:

500mW GLASS SURFACE MOUNT ZENER DIODES

Note:

This datasheet PDF includes multiple part numbers: 1N5247UR, 1N5221UR.
Please refer to the document for exact specifications by model.

1N5247UR Features

* Surface mount equivalents to the JEDEC registered 1N5221 thru 1N5281B series

* Hermetically sealed surface mount package

* RoHS Compliant devices available by adding “e3” suffix

* Internal meta
