1N5338B, 1N5333B Datasheet - Microsemi

1N5338B, 1N5333B, Silicon 5 Watt Zener Diodes

The 1N5333B through 1N5388B JEDEC registered series of axial-leaded 5.0 watt Zeners provides a selection from 3.3 to 200 volts with different tolerances as identified by specific suffix letter on the part number. These plastic encapsulated Zeners have a moisture classification of “Level 1” with no d.

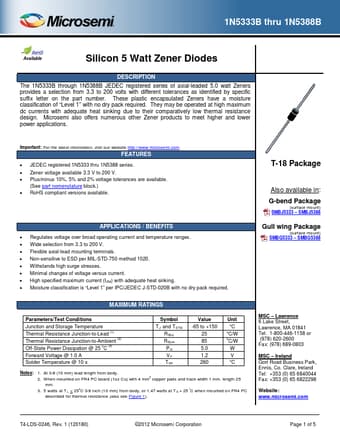

Datasheet Preview Page 1

1N5333B-Microsemi.pdf

1N5338B Datasheet Preview — This datasheet PDF includes multiple part numbers: 1N5338B, 1N5333B. Please refer to the document for exact specifications by model.

1N5338B Datasheet Preview Page 2

1N5338B Datasheet Preview Page 3

Datasheet Details

Part number:

1N5338B, 1N5333B

Manufacturer:

File Size:

361.81 KB

Description:

Silicon 5 Watt Zener Diodes

Note:

This datasheet PDF includes multiple part numbers: 1N5338B, 1N5333B.
Please refer to the document for exact specifications by model.

1N5338B Features

* JEDEC registered 1N5333 thru 1N5388 series.

* Zener voltage available 3.3 V to 200 V.

* Plus/minus 10%, 5% and 2% voltage tolerances are available. (See part nomenclature block.)

* RoHS compliant versions available. APPLICATIONS / BENEFITS

* Regulates voltag
