M54532P, 4-UNIT 1.5A DARLINGTON TRANSISTOR ARRAY

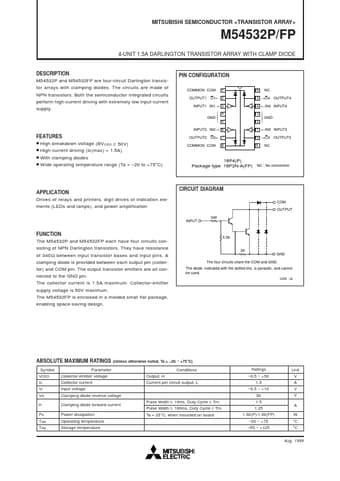

M54532P and M54532FP are four-circuit Darlington transistor arrays with clamping diodes. The circuits are made of NPN transistors. Both the semiconductor integrated circuits perform high-current driving with extremely low input-current supply. PIN CONFIGURATION COMMON COM 1 16 NC OUTPUT1 O1← 2 INPU.

M54532P_MitsubishiElectricSemiconductor.pdf

M54532P Datasheet Preview — Preview of M54532P PDF

Datasheet Details

Part number:

M54532P

Manufacturer:

Mitsubishi

File Size:

76.95 KB

Description:

4-UNIT 1.5A DARLINGTON TRANSISTOR ARRAY

M54532P Features

* High breakdown voltage (BV CEO ≥ 50V) High-current driving (Ic(max) = 1.5A) With clamping diodes Wide operating temperature range (Ta =

* 20 to +75°C) OUTPUT2 O2← 7 COMMON COM 8 16P4(P) Package type 16P2N-A(FP) NC : No connection APPLICATION Drives of relays and printers, digit drives of
