ML925AA11F - InGaAsP DFB LASER DIODES

Download the ML925AA11F datasheet PDF (ML920AA11S included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for ingaasp dfb laser diodes.

Description

ML9XX11series are DFB (Distributed Feedback) laser diodes emitting light beam around 1550nm.

They are well suited for light source in long distance digital transmission system.

They are hermetically sealed devices with the photo diode for optical output monitoring.

Features

  • Homogeneous grating (AR/HR facet coating) structure DFB.
  • Wide temperature range operation ( -40 to 85ºC ).
  • Low threshold current (typical 8mA).
  • High speed response (typical 0.1nsec).
  • φ5.6mm TO-CAN package.
  • Flat window cap, Ball lens cap, or Aspherical lens cap.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (ML920AA11S_MitsubishiElectric.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

  • ML925B19F - 2.5Gbps InGaAsP DFB LASER DIODE (Mitsubishi)
  • ML925J19F - 2.5Gbps InGaAsP DFB LASER DIODE (Mitsubishi)
  • ML9203 - 5 x 7 Dot Character x 16-Digit x 2-Line Display Controller/Driver with Character RAM (OKI electronic componets)
  • ML9203-01 - 5 x 7 Dot Character x 16-Digit x 2-Line Display Controller/Driver (OKI)
  • ML9203-xx - 5 x 7 Dot Character x 16-Digit x 2-Line Display Controller/Driver (OKI electronic componets)
  • ML9204-01 - 5 x 7 Dot Character x 24-Digit x 2-Line Display Controller/Driver (OKI)
  • ML9204-02 - 5 x 7 Dot Character x 24-Digit x 2-Line Display Controller/Driver (OKI)
  • ML9204-xx - 5 x 7 Dot Character x 24-Digit x 2-Line Display Controller/Driver (OKI electronic)
  • ML9205-01 - 5 x 7 Dot Character x 16-Digit Display Controller/Driver with Character RAM (OKI electronic componets)
  • ML9206 - 5 x 7 Dot Character x 16-Digit Display Controller/Driver with Character RAM (OKI electronic componets)
Other Datasheets by Mitsubishi Electric

Full PDF Text Transcription

Click to expand full text

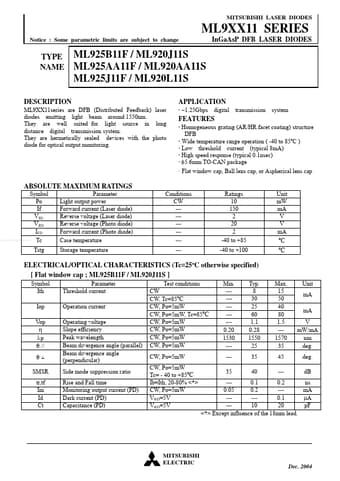

MITSUBISHI LASER DIODES ML9XX11 SERIES Notice : Some parametric limits are subject to change InGaAsP DFB LASER DIODES TYPE NAME ML925B11F / ML920J11S ML925AA11F / ML920AA11S ML925J11F / ML920L11S APPLICATION · ~1.25Gbps digital transmission system DESCRIPTION ML9XX11series are DFB (Distributed Feedback) laser diodes emitting light beam around 1550nm. They are well suited for light source in long distance digital transmission system. They are hermetically sealed devices with the photo diode for optical output monitoring. FEATURES · Homogeneous grating (AR/HR facet coating) structure DFB · Wide temperature range operation ( -40 to 85ºC ) · Low threshold current (typical 8mA) · High speed response (typical 0.1nsec) · φ5.
