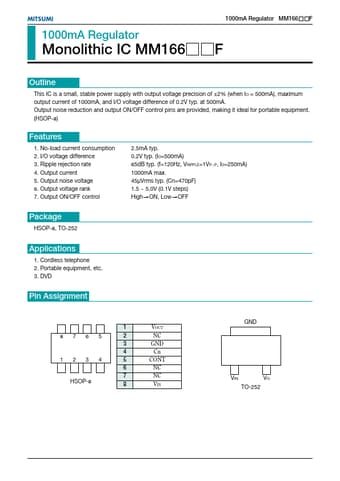

MITSUMI
1000mA Regulator
Monolithic IC MM166
1000mA Regulator MM166 F
F
Outline
This IC is a small, stable power supply with output voltage precision of ┬▒2% (when IO = 500mA), maximum
output current of 1000mA, and I/O voltage difference of 0.2V typ. at 500mA.
Output noise reduction and output ON/OFF control pins are provided, making it ideal for portable equipment.
(HSOP-8)
Features
1. No-load current consumption
2. I/O voltage difference
3. Ripple rejection rate
4. Output current
5. Output noise voltage
6. Output voltage rank
7. Output ON/OFF control
2.5mA typ.
0.2V typ. (IO=500mA)
65dB typ. (f=120Hz, VRIPPLE=1VP-P, IO=250mA)
1000mA max.
45┬ÁVrms typ. (Cn=470pF)
1.5 ~ 5.0V (0.1V steps)
High ON, Low OFF
Package
HSOP-8, TO-252
Applications
1. Cordless telephone
2. Portable equipment, etc.
3. DVD
Pin Assignment
8765
1234
HSOP-8
1
2
3
4
5
6
7
8
VOUT
NC
GND
Cn
CONT
NC
NC
VIN
GND
VIN VO
TO-252




Mitsumi Electric

MM1664H Datasheet Preview

MM1664H Datasheet

1000mA Regulator

No Preview Available !

MITSUMI
Equivalent Circuit Diagram
VIN
Cont
Bias
Thermal
shutdown
Driver
1000mA Regulator MM166 F
VOUT
Current
limitter
Reference
GND
Pin Description
HSOP-8
Pin No.
1
Pin name
VOUT
Function
Output pin
2 NC No connection
3
GND
Ground
4 Cn Noise decrease pin
Cn
Internal equivalent circuit diagram
VOUT
Error
Amp.
VOUT
Cn
Error
Amp.
