Datasheet Details
| Part number | MSU001T |
|---|---|
| Manufacturer | Mosel Vitelic |
| File Size | 126.24 KB |
| Description | 20 VOICE SMART |
| Datasheet |

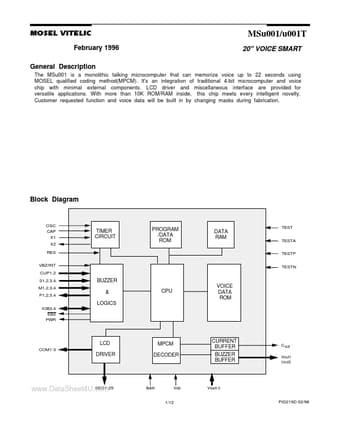

 MSU001T Datasheet
|
|
|
Description
The MSu001 is a monolithic talking microcomputer that can memorize voice up to 22 seconds using MOSEL qualified coding method(MPCM).
It's an integration of traditional 4-bit microcomputer and voice chip with minimal external components.
Features
- Low current consumption Maximal function with minimal cost Current output could drive 8 ohm speaker with a transistor, Vout could drive buzzer directly. The voice content is stored up to 20 seconds at 6 KHz S. R. and can be separated up to 64 sections. 22 seconds at 5.51 KHz sample rate (1DA00h) LCD driver provided, can drive up to 75 segments Built-In clock generator Built-In doubler, halver, tripler Internal program ROM : 1024 x 15 bits; Internal program RAM : 64 x 4 bits Two 4-bit input ports.
