2N466 - PNP Transistor

Download the 2N466 datasheet PDF (2N464 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for pnp transistor.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (2N464-Motorola.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

  • 2N465 - BJT TRANSISTOR (General)
  • 2N40 - N-Channel MOSFET (ART CHIP)
  • 2N40 - N-Channel Power MOSFET (Unisonic Technologies)
  • 2N40-V - 400V N-CHANNEL POWER MOSFET (UTC)
  • 2N4000 - Bipolar NPN Device (Seme LAB)
  • 2N4001 - Bipolar NPN Device (Seme LAB)
  • 2N4002 - PNP Epitaxial Silicon Transistor (SEMTECH)
  • 2N4003 - PNP Epitaxial Silicon Transistor (SEMTECH)
  • 2N4003K - N-Channel Enhancement Mode Power MOSFET (Weitron Technology)
  • 2N4003NLT1 - Small Signal MOSFET (WILLAS)
Other Datasheets by Motorola
  • 2N460 - PNP Transistor
  • 2N461 - PNP Transistor
  • 2N464 - PNP Transistor
  • 2N465 - PNP Transistor
  • 2N467 - PNP Transistor
  • 2N4012 - NPN silicon annular transistor
  • 2N4015 - DUAL AMPLIFIER TRANSISTOR
  • 2N4016 - DUAL AMPLIFIER TRANSISTOR

Full PDF Text Transcription

Click to expand full text

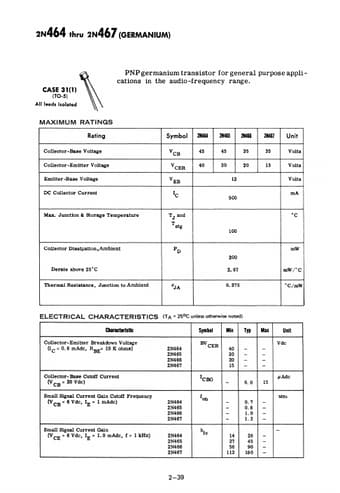

2N464 thru 2N467 (GERMANIUM) CAS(TEO-351) (1) " All I&ads isolat&d \ PNP germanium transistor for general purpose applications in the audio-frequency range. MAXIMUM RATINGS Rating Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage DC Collector Current Symbol 21464 2N4&5 2N466 2N4&7 Unit VCB 45 45 35 35 Volts VCER 40 30 20 15 Volts VEB 12 Volts IC mA 500 Max. Junction & Storage Temperature TJ and °c Tstg 100 Collector Dissipation,.Ambient PD Derate above 25°C Thermal Resistance, Junction to Ambient &JA 200 2.67 0.375 mW mW/oC °C/mW ELECTRICAL CHARACTERISTICS (TA =250 C unless otherwise noted) Characteristic Collector-Emitter Breakdown Voltage (lc = 0.
