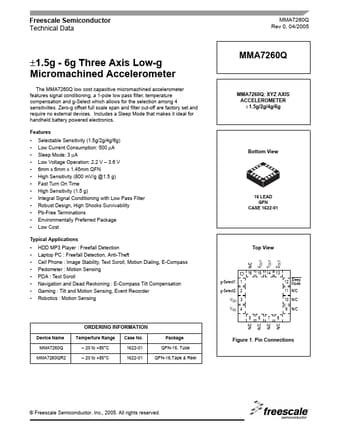

7260QR2 Datasheet | Motorola Semiconductor

features signal conditioning, a 1-pole low pass filter, temperature pensation and g-Select which allows for the selection among 4 sensitivities. Zero-g offset full scale span and filter cut-off are factory set and require no external devices. Includes a Sleep Mode that makes it ideal for handheld battery powered electronics. Features - Selectable Sensitivity (1.5g/2g/4g/6g) - Low Current Consumption: 500 µA - Sleep Mode: 3 µA - Low Voltage Operation: 2.2 V - 3.6 V - 6mm x 6mm x 1.45mm QFN - High Sensitivity (800 m V/g @1.5 g) - Fast Turn On Time - High Sensitivity (1.5 g) - Integral Signal Conditioning with Low Pass Filter - Robust Design, High Shocks Survivability - Pb-Free Terminations - Environmentally Preferred Package - Low Cost Typical Applications - HDD MP3 Player : Freefall Detection - Laptop PC : Freefall Detection, Anti-Theft - Cell Phone : Image Stability, Text Scroll, Motion Dialing, E-pass - Pedometer : Motion Sensing - PDA : Text Scroll - Navigation and Dead Reckoning : E-pass Tilt pensation - Gaming : Tilt and Motion Sensing, Event Recorder - Robotics : Motion Sensing Device Name MMA7260Q MMA7260QR2 ORDERING INFORMATION Temperture Range Case No. Package - 20 to +85°C 1622-01 QFN-16, Tube - 20 to +85°C 1622-01 QFN-16,Tape & Reel MMA7260Q MMA7260Q: XYZ AXIS ACCELEROMETER ± 1.5g/2g/4g/6g Bottom View 16 LEAD...
