Motorola Electronic Components Datasheet

SN54LS42 Datasheet

ONE-OF-TEN DECODER

No Preview Available !

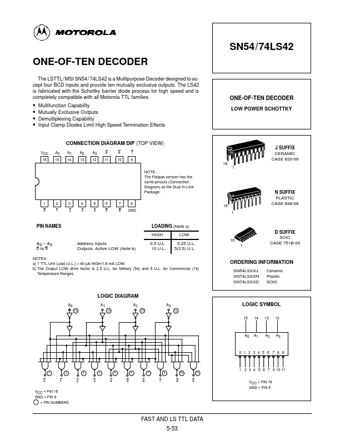

ONE-OF-TEN DECODER
The LSTTL / MSI SN54 / 74LS42 is a Multipurpose Decoder designed to ac-
cept four BCD inputs and provide ten mutually exclusive outputs. The LS42
is fabricated with the Schottky barrier diode process for high speed and is
completely compatible with all Motorola TTL families.
Multifunction Capability
Mutually Exclusive Outputs
Demultiplexing Capability
Input Clamp Diodes Limit High Speed Termination Effects
CONNECTION DIAGRAM DIP (TOP VIEW)
VCC A0 A1 A2 A3 9 8 7
16 15 14 13 12 11 10 9
NOTE:
The Flatpak version has the
same pinouts (Connection
Diagram) as the Dual In-Line
Package.
12
01
3 4 56
2 3 45
78
6 GND
PIN NAMES
A0 – A3
0 to 9
Address Inputs
Outputs, Active LOW (Note b)
LOADING (Note a)
HIGH
LOW
0.5 U.L.
0.25 U.L.
10 U.L. 5(2.5) U.L.
NOTES:
a) 1 TTL Unit Load (U.L.) = 40 µA HIGH/1.6 mA LOW.
b) The Output LOW drive factor is 2.5 U.L. for Military (54) and 5 U.L. for Commercial (74)
Temperature Ranges.
A0
15
LOGIC DIAGRAM
A1
14
A2
13
A3
12
12
3 45
6
7 9 10 11
0 1 2 3 4 56 7 89
VCC = PIN 16
GND = PIN 8
= PIN NUMBERS
FAST AND LS TTL DATA
5-53
SN54/74LS42
ONE-OF-TEN DECODER
LOW POWER SCHOTTKY
16
1
J SUFFIX
CERAMIC
CASE 620-09
16
1
N SUFFIX
PLASTIC
CASE 648-08
16
1
D SUFFIX
SOIC
CASE 751B-03
ORDERING INFORMATION
SN54LSXXJ
SN74LSXXN
SN74LSXXD
Ceramic
Plastic
SOIC
LOGIC SYMBOL
15 14 13 12
A0 A1 A2 A3
012345 6 7 89
1 2 3 4 5 6 7 9 10 11
VCC = PIN 16
GND = PIN 8


Motorola Electronic Components Datasheet

SN54LS42 Datasheet

ONE-OF-TEN DECODER

No Preview Available !

SN54 / 74LS42
FUNCTIONAL DESCRIPTION
The LS42 decoder accepts four active HIGH BCD inputs
and provides ten mutually exclusive active LOW outputs, as
shown by logic symbol or diagram. The active LOW outputs
facilitate addressing other MSI units with LOW input enables.
The logic design of the LS42 ensures that all outputs
are HIGH when binary codes greater than nine are applied
to the inputs.
The most significant input A3 produces a useful inhibit func-
tion when the LS42 is used as a one-of-eight decoder. The A3
input can also be used as the Data input in an 8-output
demultiplexer application.
TRUTH TABLE
A0 A1 A2 A3 0 1 2 3 4 5 6 7 8 9
L L L L LHHHHHHHHH
H L L L HLHHHHHHHH
L H L L HHLHHHHHHH
H H L L HHHLHHHHHH
L L H L HHHHLHHHHH
H L H L HHHHHLHHHH
L H H L HHHHHHLHHH
H H H L HHHHHHHLHH
L L L H HHHHHHHHLH
H L L H HHHHHHHHHL
L H L H HHHHHHHHHH
H H L H HHHHHHHHHH
L L H H HHHHHHHHHH
H L H H HHHHHHHHHH
L H H H HHHHHHHHHH
H H H H HHHHHHHHHH
H = HIGH Voltage Level
L = LOW Voltage Level
GUARANTEED OPERATING RANGES
Symbol
Parameter
VCC
Supply Voltage
TA Operating Ambient Temperature Range
IOH Output Current — High
IOL Output Current — Low
Min Typ Max Unit
54 4.5 5.0 5.5
74 4.75 5.0 5.25
V
54 – 55 25 125 °C
74 0 25 70
54, 74
– 0.4
mA
54 4.0 mA
74 8.0
FAST AND LS TTL DATA
5-54


Part Number SN54LS42
Description ONE-OF-TEN DECODER
Maker Motorola Inc
Total Page 3 Pages
