SN54LS83A Datasheet - Motorola Inc

SN54LS83A, 4-BIT BINARY FULL ADDER WITH FAST CARRY

The LS83A adds two 4-bit binary words (A plus B) plus the incoming carry. The binary sum appears on the sum outputs (∑1 * ∑4) and outgoing carry (C4) outputs. C0 + (A1+B1)+2(A2+B2)+4(A3+B3)+8(A4+B4) = ∑1+2∑2+4∑3+8∑4+16C4 Where: (+) = plus Due to the symmetry of the binary add function the LS.

SN54LS83A_MotorolaInc.pdf

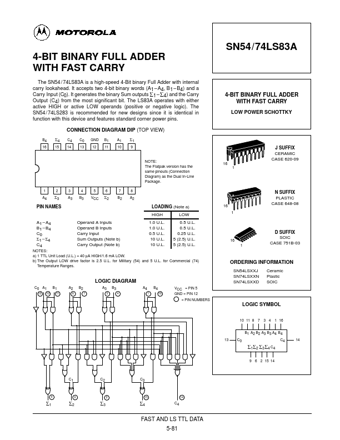

SN54LS83A Datasheet Preview — Preview of SN54LS83A PDF

Datasheet Details

Part number:

SN54LS83A

Manufacturer:

Motorola Inc

File Size:

94.88 KB

Description:

4-BIT BINARY FULL ADDER WITH FAST CARRY

SN54LS83A Features

* standard corner power pins. CONNECTION DIAGRAM DIP (TOP VIEW) B4 16 Σ4 15 C4 14 C0 13 GND 12 B1 11 A1 10 Σ1 9 NOTE: The Flatpak version has the same pinouts (Connection Diagram) as the Dual In-Line Package. 4-BIT BINARY FULL ADDER WITH FAST CARRY LOW POWER SCHOTTKY J SUFFIX CERAMIC CASE 620-09 16
