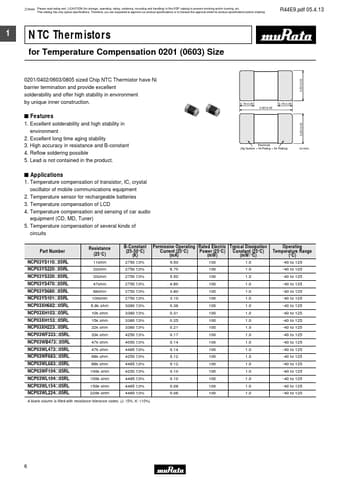

Features 1. Excellent solderability and high stability in environment 2. Excellent long time aging stability 3. High accuracy in resistance and B-constant 4. Reflow soldering possible 5. Lead is not contained in the product. 0.15±0.05 0.60±0.03 0.15±0.05 0.30±0.03 Electrode (Ag System + Ni Plating + Sn Plating) (in mm) 0.30±0.03 s Applications 1. Temperature pensation of transistor, IC, crystal oscillator of mobile munications equipment 2. Temperature sensor for rechargeable batteries 3. Temperature pensation of LCD 4. Temperature pensation and sensing of car audio equipment (CD, MD, Tuner) 5. Temperature pensation of several kinds of circuits Part Number NCP03YS110p05RL NCP03YS220p05RL NCP03YS330p05RL NCP03YS470p05RL NCP03YS680p05RL NCP03YS101p05RL NCP03XH682p05RL NCP03XH103p05RL NCP03XH153p05RL NCP03XH223p05RL NCP03WF333p05RL NCP03WB473p05RL NCP03WL473p05RL NCP03WF683p05RL NCP03WL683p05RL NCP03WF104p05RL NCP03WL104p05RL NCP03WL154p05RL NCP03WL224p05RL Resistance (25°C) 11ohm 22ohm 33ohm 47ohm 68ohm 100ohm 6.8k ohm 10k ohm 15k ohm 22k ohm 33k ohm 47k ohm 47k ohm 68k ohm 68k ohm 100k ohm 100k ohm 150k ohm 220k ohm B-Constant (25-50°C) (K) 2750 ±3% 2750 ±3% 2750 ±3% 2750 ±3% 2750 ±3% 2750 ±3% 3380 ±3% 3380 ±3% 3380 ±3% 3380 ±3% 4250 ±3% 4050 ±3% 4485 ±3% 4250 ±3% 4485 ±3% 4250 ±3% 4485 ±3% 4485 ±3% 4485 ±3% Permissive Operating Rated Electric Typical Dissipation Current (25°C) Power (25°C) Constant (25°C) (m A) (m W) (m W/°C) 9.50 100 1.0 6.70 100 1.0 5.50 100 1.0 4.60 100 1.0 3.80 100 1.0 3.10 100 1.0 0.38 100 1.0 0.31 100 1.0 0.25 100 1.0 0.21 100 1.0 0.17 100 1.0 0.14 100 1.0 0.14 100 1.0 0.12 100 1.0 0.12 100 1.0 0.10 100 1.0 0.10 100 1.0 0.08 100 1.0 0.06 100 1.0 Operating Temperature...
