NDL1209SC, NDL0505SC Datasheet - Murata

NDL1209SC, NDL0505SC, Isolated 2W Wide Input Single Output DC/DC Converters

The NDL series is a range of high performance miniature DC/DC converters having regulated outputs over the wide temperature range of -40ºC to 85ºC. The input voltage range is 2:1 with the output power at 2 watts and the input to output isolation is 1kVDC. Continuous short circuit protection, externa.

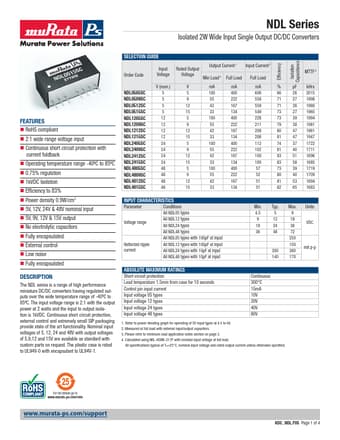

Datasheet Preview Page 1

NDL0505SC-Murata.pdf

NDL1209SC Datasheet Preview — This datasheet PDF includes multiple part numbers: NDL1209SC, NDL0505SC. Please refer to the document for exact specifications by model.

NDL1209SC Datasheet Preview Page 2

NDL1209SC Datasheet Preview Page 3

Datasheet Details

Part number:

NDL1209SC, NDL0505SC

Manufacturer:

Murata

File Size:

107.82 KB

Description:

Isolated 2W Wide Input Single Output DC/DC Converters

Note:

This datasheet PDF includes multiple part numbers: NDL1209SC, NDL0505SC.
Please refer to the document for exact specifications by model.

NDL1209SC Features

* RoHS compliant

* 2:1 wide range voltage input

* Continuous short circuit protection with current foldback

* Operating temperature range -40ºC to 85ºC

* 0.75% regulation

* 1kVDC Isolation

* Efﬁciency to 83%

* Power density 0.9W
