NJG1612HA8 - SPDT Switch Gaas Mmic

NJG1612HA8 Description

NJG1612HA8 www.DataSheet4U.com SPDT Switch GaAs MMIC Q GENERAL .
NJG1612HA8 is a SPDT switch IC featured extremely high speed switching.

NJG1612HA8 Features

* OlSingle low voltage control OSwitching time OLow insertion loss OHigh isolation OPin at 0.2dB compression point OUltra small & ultra thin package Q PIN CONFIGURATION Top view 6 1 5 Q PACKAGE OUTLINE NJG1612HA8 +2.5~+6.5V 3ns typ. 0.45dB typ. @f=2.5GHz 0.8dB typ. @f=5.0GHz 21dB typ. @f=2.5GHz 14d

📥 Download Datasheet

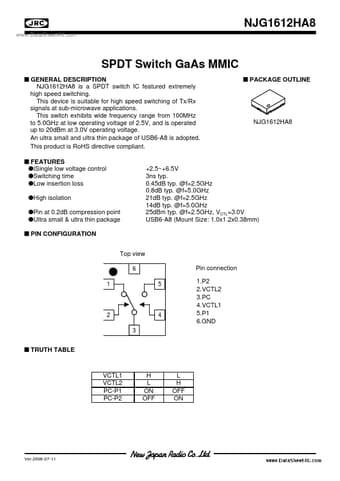

Preview of NJG1612HA8 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
NJG1612HA8
Manufacturer
NJR Corporation
File Size
142.88 KB
Datasheet
NJG1612HA8_NJRCorporation.pdf
Description
SPDT Switch Gaas Mmic
