23LQ-C380V - Motors

This page provides the datasheet information for the 23LQ-C380V, a member of the 23LQ-C250V Motors family.

NMB

23LQ-C380V Motors by NMB - Datasheet Preview — Datasheet preview – 23LQ-C380V

Datasheet Details

Part number	23LQ-C380V
Manufacturer	NMB
File Size	101.66 KB
Description	Motors
Datasheet	23LQ-C380V Datasheet
Additional preview pages of the 23LQ-C380V datasheet.

📁 Similar Datasheet

23LC1024 - 1Mbit SPI Serial SRAM (Microchip)
23LC1RB-TB - LCD TV SERVICE MANUAL (LG)
23LC512 - 512Kbit SPI Serial SRAM (Microchip)
23LCV1024 - 1-Mbit SPI Serial SRAM (Microchip)
23LCV512 - 512 Kbit SPI Serial SRAM (Microchip)
23LX1RV-MC - LCD TV (LG)

Other Datasheets by NMB

23LQ-C307V - Motors
23LQ-C308V - Motors
23LQ-C309V - hybrid motors
23LQ-C379V - Motors
23LQ-C055V - hybrid motors
23LQ-C202V - hybrid motors
23LQ-C213V - Motors
23LQ-C250V - Motors

Full PDF Text Transcription

Click to expand full text

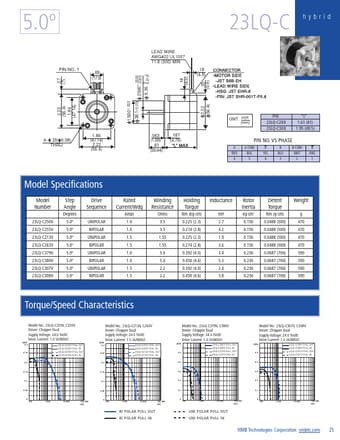

5.0º LEAD WIRE AWG#22 UL1007 11.8 (300) MIN 23LQ-C PIN NO. 1 .27 (7) hybrid ( 6.35 - 0 0.013) .2500 - .0005 +.0000 .18 (4.5) ( 38.1+ - 0.05) 1.500 + - .002 2.22 (56.4) 1.86 (47.14) 2.22 ( 56.4) .35 (0.9) .69 (17.5) .18 (4.5) UNIT: inch (mm) P/N 23LQ-C2XX 23LQ-C3XX “L” 1.61 (41) 1.95 (49.5) 4- .20( 5.08) THRU 1.86 (47.14) 2.22 (56.4) .063 (1.59) .81 (20.64) .187 (4.76) A RED 6 BLK 5 PIN NO. VS PHASE A COM A YEL 4 B BLU 3 B COM WHT 2 B ORG 1 Model Specifications Model Number 23LQ-C250V 23LQ-C255V 23LQ-C213V 23LQ-C263V 23LQ-C379V 23LQ-C380V 23LQ-C307V 23LQ-C308V Step Angle Degrees 5.0º 5.0º 5.0º 5.0º 5.0º 5.0º 5.0º 5.0º Drive Sequence UNIPOLAR BIPOLAR UNIPOLAR BIPOLAR UNIPOLAR BIPOLAR UNIPOLAR BIPOLAR Rated Current/Wdg Amps 1.0 1.0 1.5 1.5 1.0 1.0 1.5 1.
