NTE7476 Datasheet | NTE Electronics

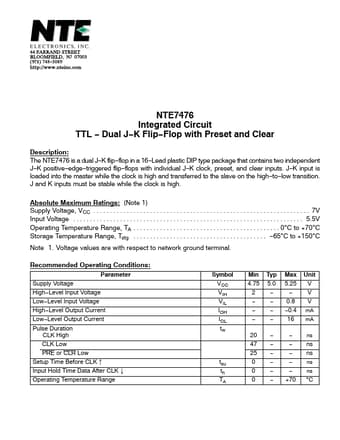

Description : The NTE7476 is a dual J- K flip- flop in a 16- Lead plastic DIP type package that contains two independent J- K positive- edge- triggered flip- flops with individual J- K clock, preset, and clear inputs. J- K input is loaded into the master while the clock is high and transferred to the slave on the high- to- low transition. J and K inputs must be stable while the clock is high. Absolute Maximum Ratings: (Note 1) Supply Voltage, VCC - - - - - - - - - - - - - 7V Input Voltage - - - - - - - - - - - - - . . . . 5.5V Operating Temperature Range, TA - - - - - - - - . . . . 0C to +70C Storage Temperature Range, Tstg - - - - - - - - - 65C to +150C Note 1. Voltage values are with respect to network ground terminal. Remended Operating Conditions: Parameter Supply Voltage High- Level Input Voltage Low- Level Input Voltage High- Level Output Current Low- Level Output Current Pulse Duration CLK High CLK Low PRE or CLR Low Setup Time Before CLK  Input Hold Time Data After CLK  Operating Temperature Range Symbol VCC VIH VIL IOH IOL tw tsu th TA Min Typ Max Unit 4.75 5.0 5.25 V 2- - V - - 0.8 V - - - 0.4 m A - - 16 m A - -...
