Controlled avalanche rectifiers

BAS11 Features

* Glass passivated

* High maximum operating temperature

* Low leakage current

* Excellent stability

* Available in ammo-pack. k a BAS11; BAS12 These packages are hermetically sealed and fatigue free as coefficients of expansion of all used parts are matched.

BAS11 General Description

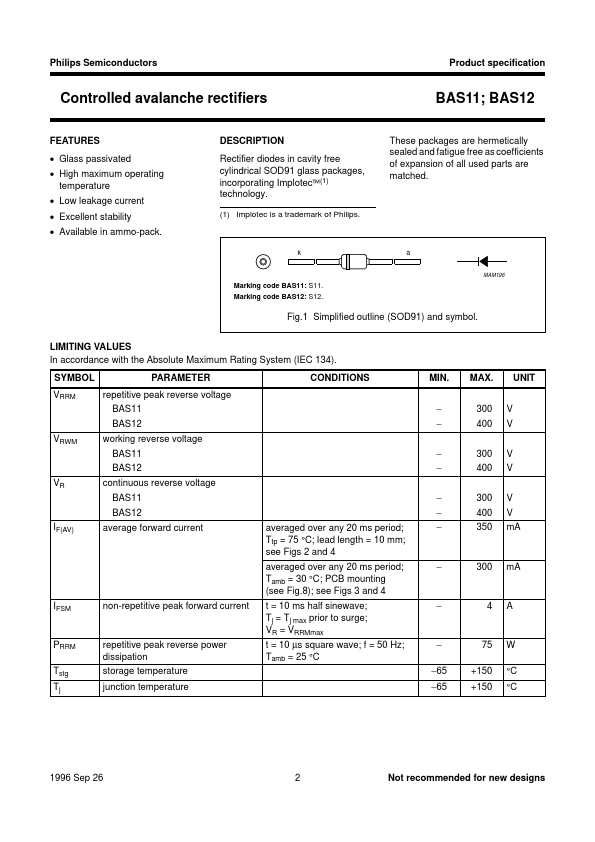

Rectifier diodes in cavity free cylindrical SOD91 glass packages, incorporating Implotec™(1) technology. (1) Implotec is a trademark of Philips. MAM196 Marking code BAS11: S11. Marking code BAS12: S12. Fig.1 Simplified outline (SOD91) and symbol. LIMITING VALUES In accordance with the Absolute Ma.

BAS11 Datasheet (42.62 KB)

BAS11 Datasheet Preview — Preview of BAS11 PDF

Datasheet Details

Part number:

BAS11

Manufacturer:

NXP ↗

File Size:

42.62 KB

Description:

Controlled avalanche rectifiers.

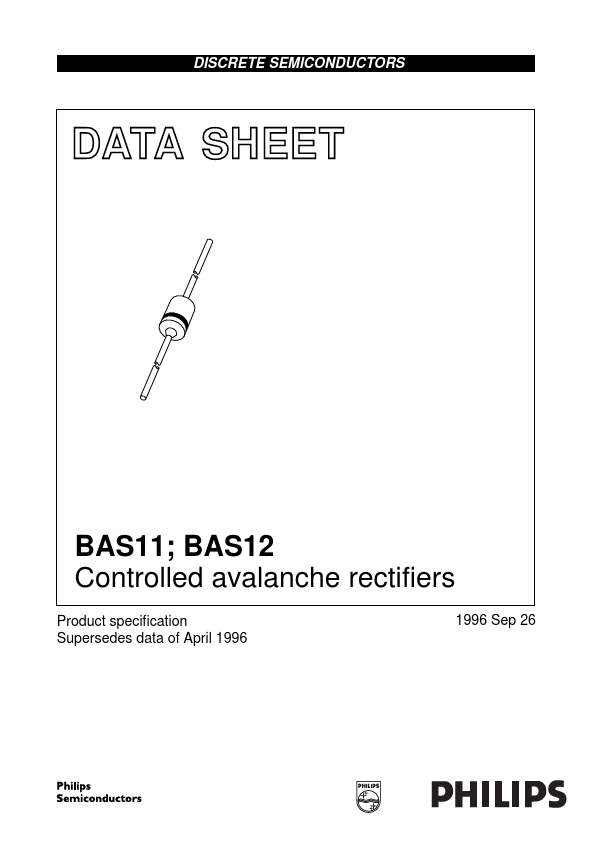

DISCRETE SEMICONDUCTORS DATA SHEET book, halfpage M3D122 BAS11; BAS12 Controlled avalanche rectifiers Product speciﬁcation Supersedes data of April.
