MF1S5009 - Mainstream contactless smart-card-IC

Description

NXP Semiconductors has developed the MIFARE MF1S5009 to be used in a contactless smart card according to ISO/IEC 14443 Type A.

Features

  • 2.1 MIFARE‚ RF Interface (ISO/IEC 14443 A).
  • Contactless transmission of data and supply energy (no battery needed).
  • Operating distance up to 100 mm depending on antenna geometry and reader configuration.
  • Operating frequency of 13.56 MHz.
  • Data transfer of 106 kbit/s.
  • Data integrity of 16-bit CRC, parity, bit coding, bit counting.
  • Anticollision.
  • Typical ticketing transaction time of < 100 ms (including backup management) 2.2 EEPROM.

📥 Download Datasheet

Datasheet preview – MF1S5009

Datasheet Details

Part number MF1S5009
Manufacturer NXP Semiconductors
File Size 266.72 KB
Description Mainstream contactless smart-card-IC
Datasheet download datasheet MF1S5009 Datasheet
Additional preview pages of the MF1S5009 datasheet.

📁 Similar Datasheet

Other Datasheets by NXP Semiconductors

    Full PDF Text Transcription

    Click to expand full text

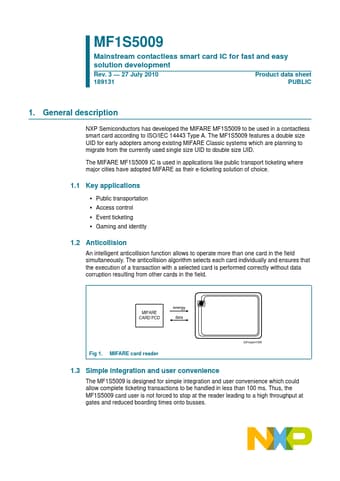

    MF1S5009 Mainstream contactless smart card IC for fast and easy solution development Rev. 3 — 27 July 2010 189131 Product data sheet PUBLIC 1. General description NXP Semiconductors has developed the MIFARE MF1S5009 to be used in a contactless smart card according to ISO/IEC 14443 Type A. The MF1S5009 features a double size UID for early adopters among existing MIFARE Classic systems which are planning to migrate from the currently used single size UID to double size UID. The MIFARE MF1S5009 IC is used in applications like public transport ticketing where major cities have adopted MIFARE as their e-ticketing solution of choice. 1.1 Key applications • Public transportation • Access control • Event ticketing • Gaming and identity 1.
    Published: |
