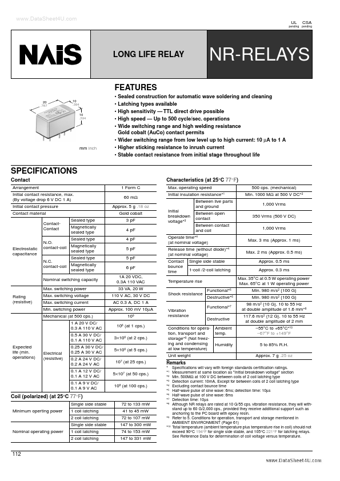

NR-SD-12 Overview
UL pending CSA pending LONG LIFE RELAY NR-RELAYS.
NR-SD-12 Key Features
- Sealed construction for automatic wave soldering and cleaning
- Latching types available
- High sensitivity
- TTL direct drive possible
- High speed
- Up to 500 cycle/sec. operations
- Wide switching range and high welding resistance Gold cobalt (AuCo) contact permits
- Wider switching range from low level up to high current: 10 µA to 1 A
- Higher sticking resistance to inrush current
- Stable contact resistance from initial stage throughout life
