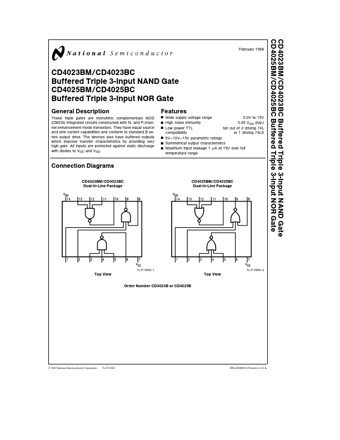

CD4025BC gate equivalent, buffered triple 3-input nand/nor gate.
Y Y Y
Y Y Y
Wide supply voltage range 3 0V to 15V High noise immunity 0 45 VDD (typ ) Low power TTL fan out of 2 driving 74L compatibility or 1 driving 74LS 5V
&nbs.
These triple gates are monolithic complementary MOS (CMOS) integrated circuits constructed with N- and P-channel enhancement mode transistors They have equal source and sink current capabilities and conform to standard B series output drive The devic.
