LM124 Datasheet - National Semiconductor

LM124, Low Power Quad Operational Amplifiers

The LM124 series consists of four independent, high gain, internally frequency compensated operational amplifiers which were designed specifically to operate from a single power supply over a wide range of voltages. Operation from split power supplies is also possible and the low power supply curren.

LM124_NationalSemiconductor.pdf

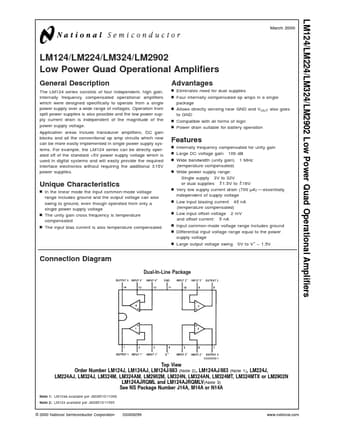

LM124 Datasheet Preview — Preview of LM124 PDF

Datasheet Details

Part number:

LM124

Manufacturer:

National Semiconductor

File Size:

453.45 KB

Description:

Low Power Quad Operational Amplifiers

LM124 Features

* n Internally frequency compensated for unity gain n Large DC voltage gain 100 dB n Wide bandwidth (unity gain) 1 MHz (temperature compensated) n Wide power supply range: Single supply 3V to 32V or dual supplies ± 1.5V to ± 16V n Very low supply current drain (700 µA)

* essentially independen
