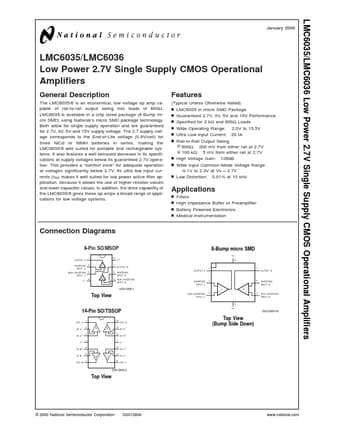

LMC6035/LMC6036
Low Power 2.7V Single Supply CMOS Operational
Amplifiers
General Description
The LMC6035/6 is an economical, low voltage op amp ca-
pable of rail-to-rail output swing into loads of 600.
LMC6035 is available in a chip sized package (8-Bump mi-
cro SMD) using National’s micro SMD package technology.
Both allow for single supply operation and are guaranteed
for 2.7V, 3V, 5V and 15V supply voltage. The 2.7 supply volt-
age corresponds to the End-of-Life voltage (0.9V/cell) for
three NiCd or NiMH batteries in series, making the
LMC6035/6 well suited for portable and rechargeable sys-
tems. It also features a well behaved decrease in its specifi-
cations at supply voltages below its guaranteed 2.7V opera-
tion. This provides a “comfort zone” for adequate operation
at voltages significantly below 2.7V. Its ultra low input cur-
rents (IIN) makes it well suited for low power active filter ap-
plication, because it allows the use of higher resistor values
and lower capacitor values. In addition, the drive capability of
the LMC6035/6 gives these op amps a broad range of appli-
cations for low voltage systems.
Features
(Typical Unless Otherwise Noted)
n LMC6035 in micro SMD Package
n Guaranteed 2.7V, 3V, 5V and 15V Performance
n Specified for 2 kand 600Loads
n Wide Operating Range: 2.0V to 15.5V
n Ultra Low Input Current: 20 fA
n Rail-to-Rail Output Swing
@ 600: 200 mV from either rail at 2.7V
@ 100 k: 5 mV from either rail at 2.7V
n High Voltage Gain: 126dB
n Wide Input Common-Mode Voltage Range
-0.1V to 2.3V at Vs = 2.7V
n Low Distortion: 0.01% at 10 kHz
Applications
n Filters
n High Impedance Buffer or Preamplifier
n Battery Powered Electronics
n Medical Instrumentation
Connection Diagrams
8-Pin SO/MSOP
8-Bump micro SMD
Top View
DS012830-1
14-Pin SO/TSSOP
Top View
(Bump Side Down)
DS012830-65
DS012830-2
Top View
© 2000 National Semiconductor Corporation DS012830
www.national.com


National Semiconductor Electronic Components Datasheet

LMC6035 Datasheet

Low Power 2.7V Single Supply CMOS Operational Amplifiers

No Preview Available !

Ordering Information
Package
8-pin Small Outline (SO)
8-pin Mini Small Outline
(MSOP)
14-pin Small Outline (SO)
14-pin Thin Shrink Small
Outline (TSSOP)
8-Bump micro SMD
Temperature
Range
Industrial
−40˚C to +85˚C
LMC6035IM
LMC6035IMX
LMC6035IMM
LMC6035IMMX
LMC6036IM
LMC6036IMX
LMC6036IMT
LMC6036IMTX
LMC6035IBP
LMC6035IBPX
Transport
Media
Rails
2.5k Units
Tape and
Reel
1k Units Tape
and Reel
3.5k Units
Tape and
Reel
Rails
2.5k Units
Tape and
Reel
Rails
2.5k Units
Tape and
Reel
250 Units
Tape and
Reel
3k Units Tape
and Reel
NSC
Drawing
M08A
MUA08A
M14A
MTC14
BPA08FFB
