Description

National’s LMV1024 and LMV1026 stereo amplifiers are solutions for the new generation of voice enrichment capabilities.

National has integrated sigma delta modulation and analog cores to improve the voice quality and the performance and to support designer’s choices.

Features

  • (Typical VDD = 1.8V, CLOCK = 1.2 MHz, fINPUT = 1 kHz, VINPUT = 18 mVPP, unless otherwise specified) n Enhanced high-performance, full PDM output from the element n Stereo chipset and array routing n SNR A-weighted 59 dB n Digital A-weighted noise floor.
  • 89 dBFS n Supply current 518 µA n Clock frequency 400 kHz to 2.4 MHz n Total harmonic distortion 0.03% n Power supply rejection ratio 100 dB n Adhesion technology > 1 kg n Highly integrated stereo or mono signaling n Maximized system perf.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (LMV1026_NationalSemiconductor.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

  • LMV1024 - PDM Output with Pre-Amplifier (Texas Instruments)
  • LMV1026 - PDM Output with Pre-Amplifier (Texas Instruments)
  • LMV1012 - LMV1012 Analog Series: Pre-Amplified IC for High Gain 2-Wire Microphones (Rev. H) (ETCTI)
  • LMV1015 - LMV1015 Analog Series: Built-in Gain IC for High Sensitivity 2-Wire Microphone (Rev. B) (ETCTI)
  • LMV1031 - LMV1031-20 Amp for Internal 3-Wire Analog Microphones External Preamp (Rev. B) (ETCTI)
  • LMV1032 - LMV1032-06/LMV1032-15/LMV1032-25 Amps for 3-Wire Analog Electret Microphones (Rev. G) (ETCTI)
  • LMV1088 - Dual Input Far Field Noise Suppression Microphone Amp w/Auto Cal (Rev. J) (ETCTI)
  • LMV1089 - Dual Input Far Field Noise Suppression Microphone Amp w/ Auto Calibration (Rev. H) (ETCTI)
  • LMV1090 - LMV1090 Dual Input Far Field Noise Suppression Microphone Amplifier (Rev. I) (ETCTI)
  • LMV1090 - Far Field Noise Suppression Microphone Amplifier (National Semiconductor Corporation)
Other Datasheets by National Semiconductor
  • LMV102 - Fixed-Gain Amplifiers
  • LMV1022 - PDM Output Pre-Amplifier
  • LMV1023 - PDM Output Pre-Amplifier
  • LMV1026 - (LMV1024 / LMV1026) PDM Output
  • LMV101 - Fixed-Gain Amplifiers
  • LMV1012 - Pre-Amplified ICs for High Gain 2-Wire Microphones
  • LMV1015 - Built-in Gain IC
  • LMV1031-20 - Amplifier

Full PDF Text Transcription

Click to expand full text

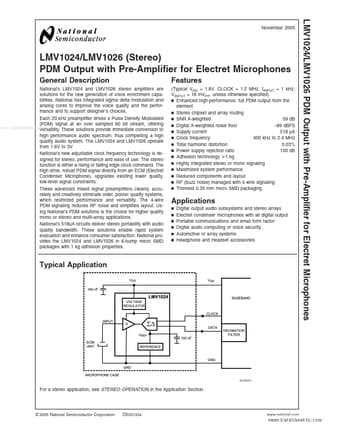

LMV1024/LMV1026 PDM Output with Pre-Amplifier for Electret Microphones November 2005 LMV1024/LMV1026 (Stereo) PDM Output with Pre-Amplifier for Electret Microphones General Description National’s LMV1024 and LMV1026 stereo amplifiers are solutions for the new generation of voice enrichment capabilities. National has integrated sigma delta modulation and analog cores to improve the voice quality and the performance and to support designer’s choices. Each 20 kHz preamplifier drives a Pulse Density Modulated (PDM) signal at an over sampled 60 bit stream, offering www.DataSheet4U.com versatility. These solutions provide immediate conversion to high performance audio spectrum, thus completing a high quality audio system. The LMV1024 and LMV1026 operate from 1.6V to 3V.
Published: |
