SM73710 - SOT-23 Temperature Sensor

General Description

The SM73710 is a precision integrated-circuit temperature sensor that can sense a

40°C to +125°C temperature range while operating from a single +2.7V supply.

Key Features

  • Renewable Energy Grade.
  • Calibrated linear scale factor of +6.25 mV/°C.
  • Rated for full.
  • 40°C to +125°C range.
  • Suitable for remote.

📥 Download Datasheet

📁 Similar Datasheet

Brand Logo Part Number Description Manufacturer
Texas Instruments Logo SM73710 SOT-23 Temperature Sensor Texas Instruments

More Datasheets from National Semiconductor (now Texas Instruments)

Part Number Description
SM73302 Decompensated Operational Amplifier
SM73306 CMOS Rail-to-Rail Input and Output Operational Amplifier
SM73307 CMOS Input Amplifier
SM73308 RRO Operational Amplifier
SM73403 Single General Purpose Voltage Comparator
SM72238 SolarMagic Micropower Voltage Regulator
SM72295 Photovoltaic Full Bridge Driver
SM72442 Programmable Maximum Power Point Tracking Controller
SM72480 LLP-6 Factory Preset Temperature Switch and Temperature Sensor
SM72482 SolarMagic Dual 5A Compound Gate Driver

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

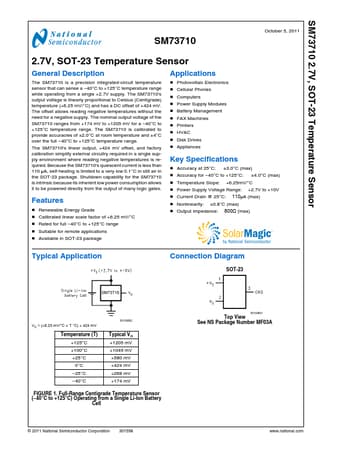

SM73710 2.7V, SOT-23 Temperature Sensor SM73710 October 5, 2011 2.7V, SOT-23 Temperature Sensor General Description The SM73710 is a precision integrated-circuit temperature sensor that can sense a −40°C to +125°C temperature range while operating from a single +2.7V supply. The SM73710's output voltage is linearly proportional to Celsius (Centigrade) temperature (+6.25 mV/°C) and has a DC offset of +424 mV. The offset allows reading negative temperatures without the need for a negative supply. The nominal output voltage of the SM73710 ranges from +174 mV to +1205 mV for a −40°C to +125°C temperature range. The SM73710 is calibrated to provide accuracies of ±2.0°C at room temperature and ±4°C over the full −40°C to +125°C temperature range.
