MBR6060PT - Dual Common-Cathode Schottky Rectifier

Product Overview

Nell Semiconductors

Part number	MBR6060PT
Manufacturer	Nell Semiconductors
File Size	275.92 KB
Description	Dual Common-Cathode Schottky Rectifier
Datasheet	MBR6060PT Datasheet

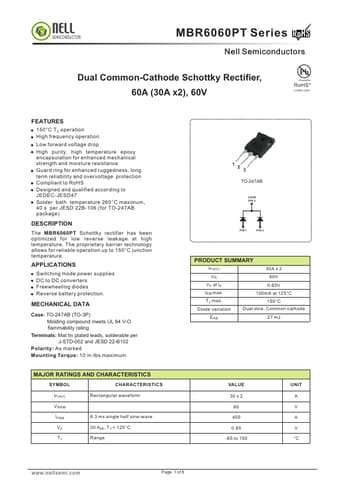

Additional preview pages of the MBR6060PT datasheet.

The MBR6060PT Schottky rectifier has been optimized for low reverse leakage at high temperature.

The proprietary barrier technology allows for reliable operation up to 150°C junction temperature.

150°C TJ operation High frequency operation Low forward voltage drop High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance Guard ring for enhanced ruggedness, long term reliability and overvoltage protection Compliant to RoHS Designed and qualified according to JEDEC-JESD47 Solder bath temperature 260°C maximum, 40 s per JESD 22B-106 (for TO-247AB package).
