JRC2367 - 5.5A HIGH POWER DC/DC CONVERTER CONTROLLER IC

Description

The NJM2367 is a high power DC/DC converter controller inducing basic function of DC/DC converter controller, which consists precision reference voltage, fixed frequency oscillator, high gain error amplifier, precision output switch, cycle-by-cycle current limit, under voltage lockout, and thermal s

Features

  • qOperating Voltage (7.5V to 40V) qPWM form Switching Power Supply Control qInternal High Power Transistor 5.5A (min. ) qFixed Frequency Oscillator 72kHz (typ. ) qInternal Current Sense Amplifier qInternal Under Voltage Lockout qInternal Thermal Shutdown Circuit qBipolar Technology qPackage Outline TO-22O(5PIN) sPACKAGE.

📥 Download Datasheet

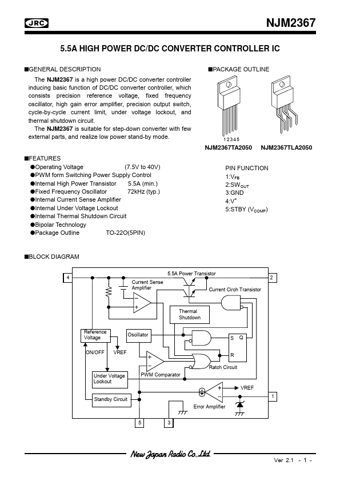

Datasheet preview – JRC2367

Datasheet Details

Part number JRC2367
Manufacturer New Japan Radio
File Size 115.85 KB
Description 5.5A HIGH POWER DC/DC CONVERTER CONTROLLER IC
Datasheet download datasheet JRC2367 Datasheet
Additional preview pages of the JRC2367 datasheet.

📁 Similar Datasheet

  • JRC2368 - NJMJRC2368 (JRC)
  • JRC2351 - Water Clear LED (IDEA)
  • JRC2381 - 3 mm Round LED (IDEA)
  • JRC2068 - LOW-NOISE DUAL OPERATIONAL AMPLIFIER (JRC)
  • JRC2122 - ULTRA LOW NOISE DUAL OPERATIONAL AMPLIFIER (JRC)
  • JRC21BP-26S - Circular Connectors (Hirose Electric)
  • JRC21BPA-26P - Circular Connectors (Hirose Electric)
  • JRC21BR-26P - Circular Connectors (Hirose Electric)
  • JRC21BRA-26S - Circular Connectors (Hirose Electric)
  • JRC21F - Relay (ETC)
Other Datasheets by New Japan Radio

Full PDF Text Transcription

Click to expand full text
NJM2367 5.5A HIGH POWER DC/DC CONVERTER CONTROLLER IC sGENERAL DESCRIPTION The NJM2367 is a high power DC/DC converter controller inducing basic function of DC/DC converter controller, which consists precision reference voltage, fixed frequency oscillator, high gain error amplifier, precision output switch, cycle-by-cycle current limit, under voltage lockout, and thermal shutdown circuit. The NJM2367 is suitable for step-down converter with few external parts, and realize low power stand-by mode. sFEATURES qOperating Voltage (7.5V to 40V) qPWM form Switching Power Supply Control qInternal High Power Transistor 5.5A (min.) qFixed Frequency Oscillator 72kHz (typ.
