NJM12877 - LDO

Description

The NJM12877 is a low dropout regulator which achieves high ripple rejection, low noise and high speed response with the bipolar technology.

Adjustable soft-start function is useful for reducing inrush current and controlling power-on sequence.

Features

  • Operating Voltage Range 2.3V to 6.5V Output Voltage Accuracy VO 1.0% Output Current IO(min. )=200mA Reverse Current Protection Adjustable soft-start Function Discharge Function ON/OFF Control Correspond to Low ESR capacitor (MLCC) Thermal Shutdown Circuit Over Current Protection Circuit Package Outline DFN6-G1(ESON6-G1), SOT-23-5 PIN.

📥 Download Datasheet

📁 Similar Datasheet

  • NJM12904 - SINGLE SUPPLY DUAL AMPLIFIER (NJR Corporation)
  • NJM12904D - SINGLE SUPPLY DUAL AMPLIFIER (NJR Corporation)
  • NJM12904E - SINGLE SUPPLY DUAL AMPLIFIER (NJR Corporation)
  • NJM12904L - SINGLE SUPPLY DUAL AMPLIFIER (NJR Corporation)
  • NJM12904M - SINGLE SUPPLY DUAL AMPLIFIER (NJR Corporation)
  • NJM12904R - SINGLE SUPPLY DUAL AMPLIFIER (NJR Corporation)
  • NJM12904RB1 - SINGLE SUPPLY DUAL AMPLIFIER (NJR Corporation)
  • NJM12904V - SINGLE SUPPLY DUAL AMPLIFIER (NJR Corporation)
  • NJM13001 - NPN POWER TRANSISTORS (MT)
  • NJM13003 - NPN POWER TRANSISTORS (MT)
Other Datasheets by New Japan Radio

Full PDF Text Transcription

Click to expand full text

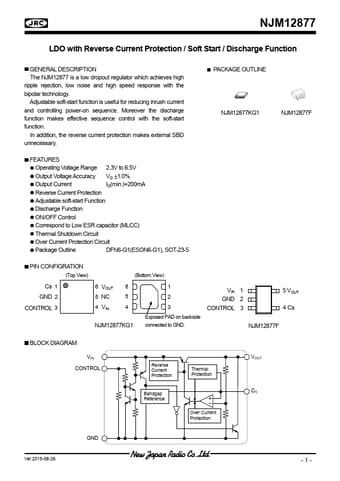

NJM12877 LDO with Reverse Current Protection / Soft Start / Discharge Function GENERAL DESCRIPTION The NJM12877 is a low dropout regulator which achieves high ripple rejection, low noise and high speed response with the bipolar technology. Adjustable soft-start function is useful for reducing inrush current and controlling power-on sequence. Moreover the discharge function makes effective sequence control with the soft-start function. In addition, the reverse current protection makes external SBD unnecessary. ■ PACKAGE OUTLINE NJM12877KG1 NJM12877F FEATURES Operating Voltage Range 2.3V to 6.5V Output Voltage Accuracy VO 1.0% Output Current IO(min.
