New Japan Radio

NJM12902V Datasheet Preview

NJM12902V Datasheet

SINGLE SUPPLY QUAD OPERATIONAL AMPLIFIER

No Preview Available !

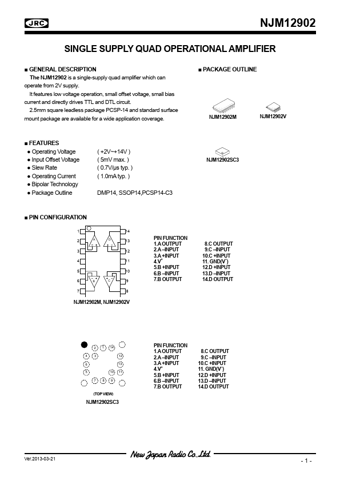

NJM12902
SINGLE SUPPLY QUAD OPERATIONAL AMPLIFIER
GENERAL DESCRIPTION
The NJM12902 is a single-supply quad amplifier which can
operate from 2V supply.
It features low voltage operation, small offset voltage, small bias
current and directly drives TTL and DTL circuit.
2.5mm square leadless package PCSP-14 and standard surface
mount package are available for a wide application coverage.
PACKAGE OUTLINE
NJM12902M
NJM12902V
FEATURES
Operating Voltage
Input Offset Voltage
Slew Rate
Operating Current
Bipolar Technology
Package Outline
( +2V~+14V )
( 5mV max. )
( 0.7V/µs typ. )
( 1.0mA typ. )
DMP14, SSOP14,PCSP14-C3
NJM12902SC3
PIN CONFIGURATION
1
14
2
A
D
13
−+
+−
3
12
4
11
5
10
−+
+−
6
B
C
9
7
8
NJM12902M, NJM12902V
PIN FUNCTION
1.A OUTPUT
2.A –INPUT
3.A +INPUT
4.V+
5.B +INPUT
6.B –INPUT
7.B OUTPUT
8.C OUTPUT
9.C –INPUT
10.C +INPUT
11. GND(V)
12.D +INPUT
13.D –INPUT
14.D OUTPUT
2 1 14
43
6
5
12
13
10 11
7 89
(TOP VIEW)
NJM12902SC3
PIN FUNCTION
1.A OUTPUT
2.A –INPUT
3.A +INPUT
4.V+
5.B +INPUT
6.B –INPUT
7.B OUTPUT
8.C OUTPUT
9.C –INPUT
10.C +INPUT
11. GND(V)
12.D +INPUT
13.D –INPUT
14.D OUTPUT
Ver.2013-03-21
-1-




New Japan Radio

NJM12902V Datasheet Preview

NJM12902V Datasheet

SINGLE SUPPLY QUAD OPERATIONAL AMPLIFIER

No Preview Available !

NJM12902
EQUIVALENT CIRCUIT ( 1/4 Shown )
-INPUT
+INPUT
V+
OUTPUT
GND(V-)
-2-
Ver.2013-03-21
