NJM41033 - TRIPLE ISOLATION AMPLIFIER

Description

video signal.

It can remove the noise of a signal with isolation amplifier.

It is suitable for the interface of the video signal of a car AV system.

Features

  • O Operating Voltage 2.6 to 5.5V O Common Mode Noise Rejection Ratio.
  • 55dBtyp. O Voltage Gain 0dBtyp. O Frequency Characteristics 0dBtyp. at 13.5MHz(for 480p) O Bipolar Technology O Package SSOP14 Q PIN.

📥 Download Datasheet

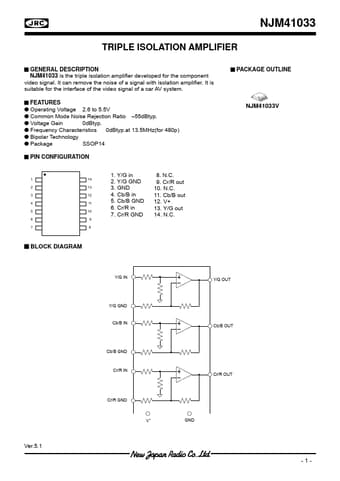

Datasheet preview – NJM41033

Datasheet Details

Part number NJM41033
Manufacturer New Japan Radio
File Size 128.66 KB
Description TRIPLE ISOLATION AMPLIFIER
Datasheet download datasheet NJM41033 Datasheet
Additional preview pages of the NJM41033 datasheet.

📁 Similar Datasheet

  • NJM41041 - 4ch Video Driver (NJR)
  • NJM41042 - DC-coupling 4-channel Video Driver (NJR)
  • NJM41050 - 47uF AC-Coupling Capacitor 3-Input 1-Output Video Driver (NJR)
  • NJM41050V - 47uF AC-Coupling Capacitor 3-Input 1-Output Video Driver (NJR)
  • NJM45001 - Analog Front-End (JRC)
  • NJM4558 - Dual Dperational Amplifier (Guangdong Kexin Industrial)
  • NJM4558 - Dual 4V to 36V Amplifier (CADEKA)
  • NJM022B - DUAL LOW POWER OPERATIONAL AMPLIFIER (JRC)
  • NJM072B - DUAL J-FET INPUT OPERATIONAL AMPLIFIER (JRC)
  • NJM082B - DUAL J-FET INPUT OPERATIONAL AMPLIFIER (JRC)
Other Datasheets by New Japan Radio

Full PDF Text Transcription

Click to expand full text
NJM41033 TRIPLE ISOLATION AMPLIFIER Q GENERAL DESCRIPTION NJM41033 is the triple isolation amplifier developed for the component video signal. It can remove the noise of a signal with isolation amplifier. It is suitable for the interface of the video signal of a car AV system. Q FEATURES O Operating Voltage 2.6 to 5.5V O Common Mode Noise Rejection Ratio –55dBtyp. O Voltage Gain 0dBtyp. O Frequency Characteristics 0dBtyp.at 13.5MHz(for 480p) O Bipolar Technology O Package SSOP14 Q PIN CONFIGURATION 1. Y/G in 8. N.C. 1 14 2. Y/G GND 9. Cr/R out 2 13 3. GND 10. N.C. 3 12 4. Cb/B in 11. Cb/B out 4 11 5. Cb/B GND 12. V+ 6. Cr/R in 13. Y/G out 5 10 7. Cr/R GND 14. N.C. 6 9 7 8 Q BLOCK DIAGRAM Q PACKAGE OUTLINE NJM41033V Ver.5.
