NJW4153 Switching Regulator

NJW4153 Description

NJW4153 Switching Regulator IC for Buck Converter Current Mode Control w/ 40V/1A MOSFET GENERAL .
The NJW4153 is a buck converter with 40V/1A MOSFET.

NJW4153 Features

* Current mode Control Maximum Rating Input Voltage 45V Wide Operating Voltage Range 4.6V to 40V Switching Current 1.4A min. PWM Control Built-in Compensation Circuit Correspond to Ceramic Capacitor (MLCC) Oscillating Frequency 1MHz typ. (A ver. ) Soft Start Function 4ms typ. UVLO (Under V

📥 Download Datasheet

Preview of NJW4153 PDF

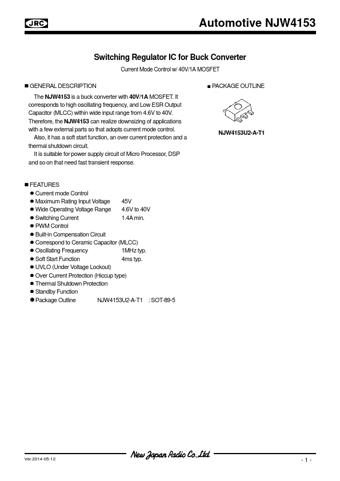

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
NJW4153
Manufacturer
New Japan Radio
File Size
234.78 KB
Datasheet
NJW4153-NewJapanRadio.pdf
Description
Switching Regulator
