NSVS1129 - SAW FILTER

New Japan Radio

Datasheet Details

Part number	NSVS1129
Manufacturer	New Japan Radio
File Size	268.85 KB
Description	SAW FILTER
Datasheet	NSVS1129 Datasheet
Additional preview pages of the NSVS1129 datasheet.

📁 Similar Datasheet

NSVS-658 - JRC SAW Filter (Japan Radio)
NSVS747 - SAW FILTER (ETC)
NSVS9016 - SAW FILTER (JRC)
NSV1C200L - PNP Transistor (ON Semiconductor)
NSV1C200MZ4 - PNP Transistor (ON Semiconductor)
NSV1C201MZ4 - NPN Transistor (ON Semiconductor)
NSV1C300CT - Bipolar Power Transistors (ON Semiconductor)
NSV1SS400T1G - High-Speed Switching Diode (ON Semiconductor)
NSV40200L - PNP Transistor (ON Semiconductor)
NSV40201LT1G - NPN Transistor (ON Semiconductor)

Other Datasheets by New Japan Radio

NSVS1120 - SAW FILTER
NSVS1127 - SAW FILTER
NSVS1101 - SAW FILTER
NSVS1102 - SAW FILTER
NSVS1103 - SAW FILTER
NSVS1104 - SAW FILTER
NSVS1105 - SAW FILTER
NSVS1106 - SAW FILTER

Full PDF Text Transcription

Click to expand full text

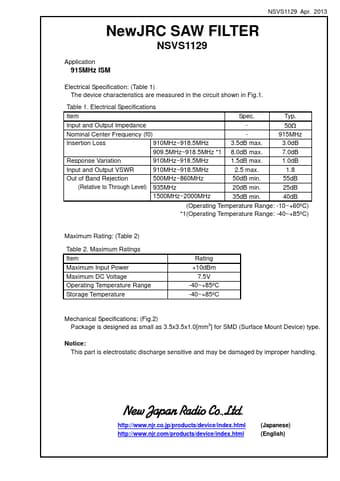

NSVS1129 Apr. 2013 NewJRC SAW FILTER NSVS1129 Application 915MHz ISM Electrical Specification: (Table 1) The device characteristics are measured in the circuit shown in Fig.1. Table 1. Electrical Specifications Item Spec. Typ. Input and Output Impedance - 50Ω Nominal Center Frequency (f0) - 915MHz Insertion Loss 910MHz~918.5MHz 3.5dB max. 3.0dB 909.5MHz~918.5MHz *1 8.0dB max. 7.0dB Response Variation 910MHz~918.5MHz 1.5dB max. 1.0dB Input and Output VSWR 910MHz~918.5MHz 2.5 max. 1.8 Out of Band Rejection 500MHz~860MHz 50dB min. 55dB (Relative to Through Level) 935MHz 20dB min. 25dB 1500MHz~2000MHz 35dB min. 40dB (Operating Temperature Range: -10~+60ºC) *1(Operating Temperature Range: -40~+85ºC) Maximum Rating: (Table 2) Table 2.
