NSVS1151 - SAW FILTER

New Japan Radio

Datasheet Details

Part number	NSVS1151
Manufacturer	New Japan Radio
File Size	146.96 KB
Description	SAW FILTER
Datasheet	NSVS1151 Datasheet
Additional preview pages of the NSVS1151 datasheet.

📁 Similar Datasheet

NSVS-658 - JRC SAW Filter (Japan Radio)
NSVS747 - SAW FILTER (ETC)
NSVS9016 - SAW FILTER (JRC)
NSV1C200L - PNP Transistor (ON Semiconductor)
NSV1C200MZ4 - PNP Transistor (ON Semiconductor)
NSV1C201MZ4 - NPN Transistor (ON Semiconductor)
NSV1C300CT - Bipolar Power Transistors (ON Semiconductor)
NSV1SS400T1G - High-Speed Switching Diode (ON Semiconductor)
NSV40200L - PNP Transistor (ON Semiconductor)
NSV40201LT1G - NPN Transistor (ON Semiconductor)

Other Datasheets by New Japan Radio

NSVS1152 - SAW FILTER
NSVS1153 - SAW FILTER
NSVS1154 - SAW FILTER
NSVS1101 - SAW FILTER
NSVS1102 - SAW FILTER
NSVS1103 - SAW FILTER
NSVS1104 - SAW FILTER
NSVS1105 - SAW FILTER

Full PDF Text Transcription

Click to expand full text

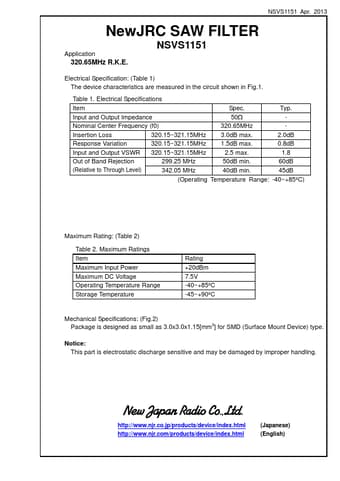

NSVS1151 Apr. 2013 NewJRC SAW FILTER Application 320.65MHz R.K.E. NSVS1151 Electrical Specification: (Table 1) The device characteristics are measured in the circuit shown in Fig.1. Table 1. Electrical Specifications Item Spec. Typ. Input and Output Impedance 50Ω - Nominal Center Frequency (f0) 320.65MHz - Insertion Loss 320.15~321.15MHz 3.0dB max. 2.0dB Response Variation 320.15~321.15MHz 1.5dB max. 0.8dB Input and Output VSWR 320.15~321.15MHz 2.5 max. 1.8 Out of Band Rejection 299.25 MHz 50dB min. 60dB (Relative to Through Level) 342.05 MHz 40dB min. 45dB (Operating Temperature Range: -40~+85ºC) Maximum Rating: (Table 2) Table 2. Maximum Ratings Item Maximum Input Power Maximum DC Voltage Operating Temperature Range Storage Temperature Rating +20dBm 7.

Published: Sep 27, 2016 |
