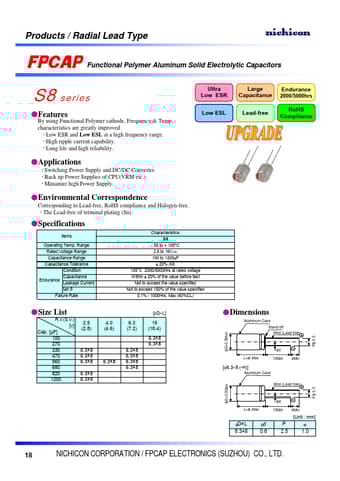

RS80E821MDNASQCG
Products / Radial Lead Type
Functional Polymer Aluminum Solid Electrolytic Capacitors
S8 series
Ultra Low ESR z Features
By using Functional Polymer cathode, Frequency & Temp. characteristics are greatly improved. Low ESR and Low ESL at a high frequency range. High ripple current capability. Long life and high reliability. z Applications
Switching Power Supply and DC/DC Converter. Back up Power Supplies of CPU(VRM etc.) Miniature high Power Supply.
Low ESL z Environmental Correspondence
Corresponding to Lead-free, Ro HS pliance and Halogen-free. The Lead-free of terminal plating (Sn) z Specifications
Items
Operating Temp. Range
Rated Voltage Range
Capacitance Range
Capacitance Tolerance
Condition
Endurance
Capacitance Leakage Current tan δ
Failure Rate
Characteristics S8
- 55 to + 105°C 2.5 to 16V- DC 100 to 1200μF ± 20% (M)
105°C 2000/5000Hrs at rated voltage Within ± 20% of the value before test
Not to exceed the value specified Not to exceed 150% of the...
