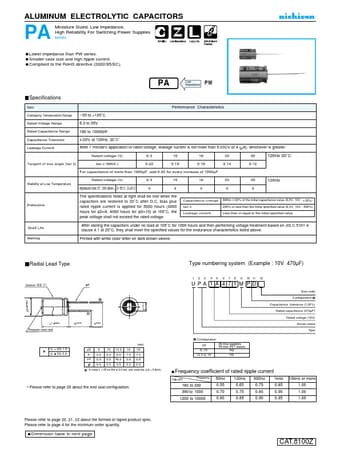

ALUMINUM ELECTROLYTIC CAPACITORS
PA Miniature Sized, Low lmpedance, High Reliability For Switching Power Supplies series
Lower impedance than PW series. Smaller case size and high ripple current. Compliant to the RoHS directive (2002/95/EC).
PA
Low Impedance
PW
Specifications
ltem Performance Characteristics
Category Temperature Range – 55 to +105˚C
Rated Voltage Range
6.3 to 35V
Rated Capacitance Range
180 to 10000µF
Capacitance Tolerance
± 20% at 120Hz, 20˚C
Leakage Current
After 1 minute's application of rated voltage, leakage current is not more than 0.03CV or 4 (µA), whichever is greater.
Rated voltage (V)
6.3 10 16 25 35 120Hz 20˚C
Tangent of loss angle (tan δ)
tan δ (MAX.)
0.22
0.19
0.16
0.14
0.12
For capacitance of more than 1000µF, add 0.
