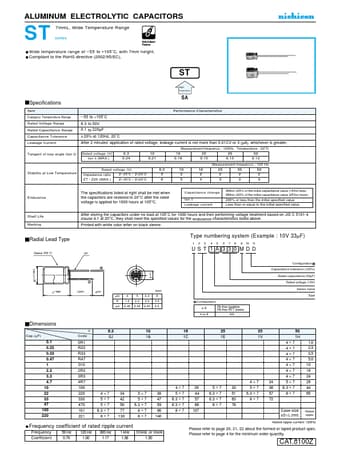

ALUMINUM ELECTROLYTIC CAPACITORS
ST 7mmL, Wide Temperature Range series
Wide temperature range of – 55 to +105˚C, with 7mm height. Compliant to the RoHS directive (2002/95/EC).
ST
High Te m p e r a t u re
Specifications
SA
Item Category Temperature Range Rated Voltage Range Rated Capacitance Range Capacitance Tolerance Leakage Current
Tangent of loss angle (tan δ)
Stability at Low Temperature
Performance Characteristics
– 55 to +105˚C
6.3 to 50V
0.1 to 220µF
± 20% at 120Hz, 20˚C
After 2 minutes' application of rated voltage, leakage current is not more than 0.01CV or 3 (µA), whichever is greater.
Rated voltage (V) tan δ (MAX.)
6.3 0.24
10 0.21
Measurement frequency : 120Hz, Temperature : 20˚C
16 25 35 50
0.18
0.15
0.13
0.
UST1C101MDD Datasheet
