B3W-1100 - Sealed Tactile Switch

Download the B3W-1100 datasheet PDF (B3W included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for sealed tactile switch.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (B3W-OMRON.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number B3W-1100
Manufacturer OMRON
File Size 440.44 KB
Description Sealed Tactile Switch
Datasheet download datasheet B3W-1100 Datasheet

📁 Similar Datasheet

Other Datasheets by OMRON

Full PDF Text Transcription

Click to expand full text

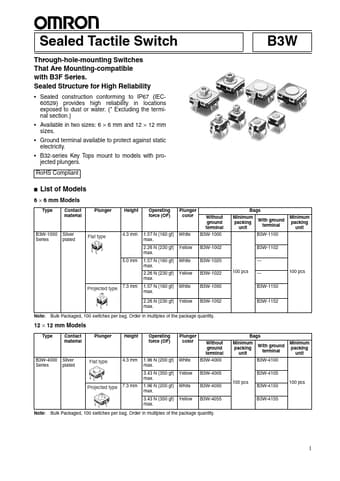

Sealed Tactile Switch B3W Through-hole-mounting Switches That Are Mounting-compatible with B3F Series. Sealed Structure for High Reliability • Sealed construction conforming to IP67 (IEC60529) provides high reliability in locations exposed to dust or water. (* Excluding the terminal section.) • Available in two sizes: 6 × 6 mm and 12 × 12 mm sizes. • Ground terminal available to protect against static electricity. • B32-series Key Tops mount to models with projected plungers. RoHS Compliant ■ List of Models 6 × 6 mm Models Type B3W-1000 Series Contact material Silver plated Plunger Flat type Projected type Height 4.3 mm 5.0 mm 7.3 mm Operating force (OF) 1.57 N {160 gf} max. 2.26 N {230 gf} max. 1.57 N {160 gf} max. 2.26 N {230 gf} max. 1.57 N {160 gf} max.
