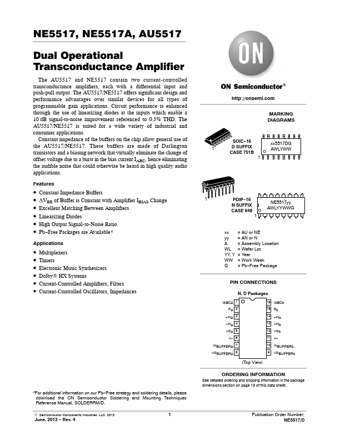

AU5517 amplifier equivalent, dual operational transconductance amplifier.
* Constant Impedance Buffers
* DVBE of Buffer is Constant with Amplifier IBIAS Change
* Excellent Matching Between Amplifiers
* Linearizing Diodes
* H.
Circuit performance is enhanced through the use of linearizing diodes at the inputs which enable a 10 dB signal-to-nois.
Pin No.
Symbol
1 IABCa 2 Da 3 +INa 4 −INa 5 VOa 6 V−
7 INBUFFERa 8 VOBUFFERa 9 VOBUFFERb 10 INBUFFERb 11 V+
12 VOb 13 −INb 14 +INb 15 Db 16 IABCb
NE5517, NE5517A, AU5517
Amplifier Bias Input A Diode Bias A Non-inverted Input A Inverted Input A.
