FDP3632 - 100V 80A N-Channel MOSFET

Features

  • RDS(ON) = 7.5 mW (Typ. ), VGS = 10 V, ID = 80 A.
  • Qg (tot) = 84 nC (Typ. ), VGS = 10 V.
  • Low Miller Charge.
  • Low Qrr Body Diode.
  • UIS Capability (Single Pulse and Repetitive Pulse).
  • These Devices are Pb.
  • Free and are RoHS Compliant.

📥 Download Datasheet

Datasheet Details

Part number FDP3632
Manufacturer onsemi
File Size 882.42 KB
Description 100V 80A N-Channel MOSFET
Datasheet download datasheet FDP3632 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
FDP3632 N-Channel MOSFET Fairchild Semiconductor
FDP3632 N-Channel MOSFET INCHANGE
FDP3651U N-Channel MOSFET Fairchild Semiconductor
FDP3651U N-Channel MOSFET INCHANGE
FDP3652 N-Channel MOSFET Fairchild Semiconductor

Other Datasheets by onsemi

Part Number Description
FDP3652 100V 61A N-Channel MOSFET
FDP3682 N-Channel MOSFET
FDP3682 100V 32A N-Channel MOSFET
FDP027N08B N-Channel MOSFET
FDP038AN06A0 N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

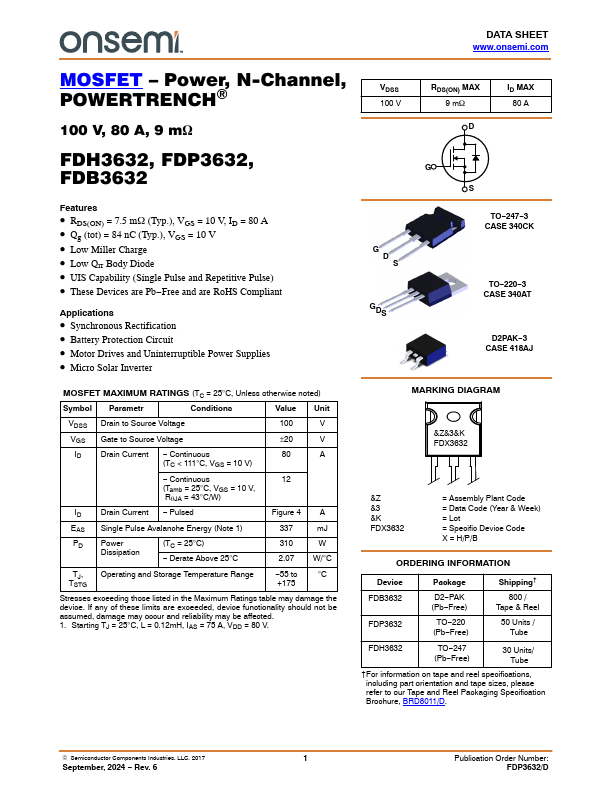

DATA SHEET www.onsemi.com MOSFET – Power, N-Channel, POWERTRENCH) VDSS 100 V RDS(ON) MAX 9 mW ID MAX 80 A 100 V, 80 A, 9 mW D FDH3632, FDP3632, FDB3632 Features • RDS(ON) = 7.5 mW (Typ.), VGS = 10 V, ID = 80 A • Qg (tot) = 84 nC (Typ.
