LM324A Single Supply Quad Operational Amplifier

Single Supply Quad Operational Amplifiers LM324, LM324A, LM324E, LM224, LM2902, LM2902E, LM2902V, NCV2902 The LM324 series are low cost, quad operational amplifiers with true differential inputs. They have several distinct advantages over standard operational amplifier types in single supply applications. The quad amplifier can operate at supply voltages as low as 3.0 V or as high as 32 V with quiescent currents about one fifth of those associated with the MC1741 (on a per amplif.

LM324A Features

* Short Circuited Protected Outputs

* True Differential Input Stage

* Single Supply Operation: 3.0 V to 32 V

* Low Input Bias Currents: 100 nA Maximum (LM324A)

* Four Amplifiers Per Package

* Internally Compensated

* Common Mode Range Extends t

LM324A, LM324 Datasheet

This datasheet PDF includes multiple part numbers: LM324A, LM324. Please refer to the document for exact specifications by model.

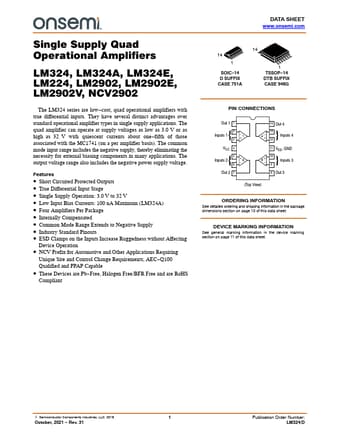

LM324A Datasheet Preview Page 2 LM324A Datasheet Preview Page 3
