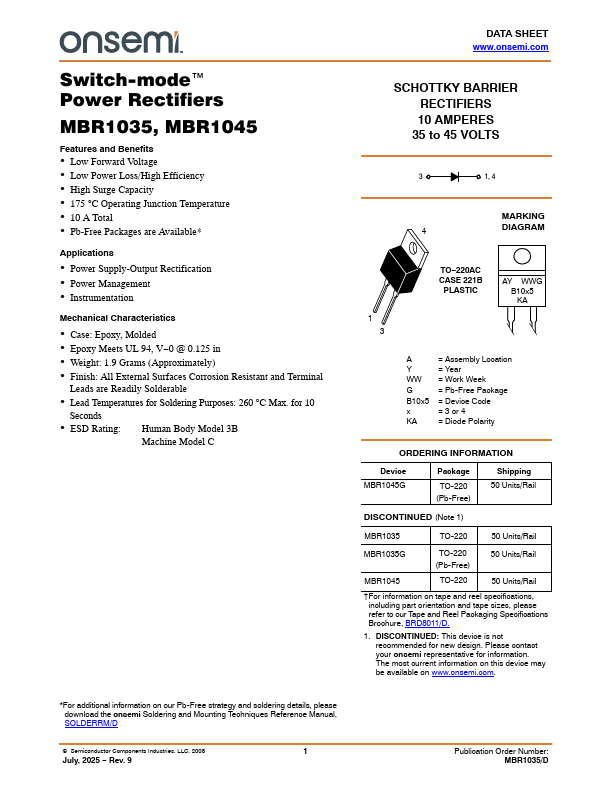

Switch-mode Power Rectifiers
MBR1035, MBR1045
Features and Benefits
Low Forward Voltage Low Power Loss/High Efficiency High Surge Capacity 175 C Operating Junction Temperature 10 A Total Pb-Free Packages are Available*
Applications
Power Supply-Output Rectification Power Management Instrumentation
Mechanical Characteristics
Case: Epoxy, Molded Epoxy Meets UL 94, V−0 @ 0.125 in Weight: 1.9 Grams (Approximately) Finish: All External Surfaces Corrosion Resistant and Terminal
Leads are Readily Solderable
Lead Temperatures for Soldering Purposes: 260 C Max. for 10
Seconds
ESD Rating:
Human Body Model 3B
Machine Model C
DATA SHEET www.onsemi.
