MBR1045 - Power Rectifiers

Download the MBR1045 datasheet PDF. This datasheet also covers the MBR1035 variant, as both devices belong to the same power rectifiers family and are provided as variant models within a single manufacturer datasheet.

Features

  • Low Forward Voltage.
  • Low Power Loss/High Efficiency.
  • High Surge Capacity.
  • 175 C Operating Junction Temperature.
  • 10 A Total.
  • Pb-Free Packages are Available.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MBR1035_ONSemiconductor.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number MBR1045
Manufacturer onsemi
File Size 204.04 KB
Description Power Rectifiers
Datasheet download datasheet MBR1045 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MBR1045 SCHOTTKY RECTIFIER SMC Diode
MBR1045 Schottky Barrier Rectifier Inchange Semiconductor
MBR1045 SCHOTTKY RECTIFIER International Rectifier
MBR1045 10A High Power Schottky Barrier Rectifiers CITC
MBR1045 (MBR1035 - MBR1060) Rectifiers Fairchild Semiconductor

Other Datasheets by onsemi

Part Number Description
MBR1045G Power Rectifiers
MBR1045MFS SWITCHMODE Power Rectifiers
MBR1045MFST1G SWITCHMODE Power Rectifiers
MBR1045MFST3G SWITCHMODE Power Rectifiers
MBR10100 SWITCHMODE Power Rectifiers

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

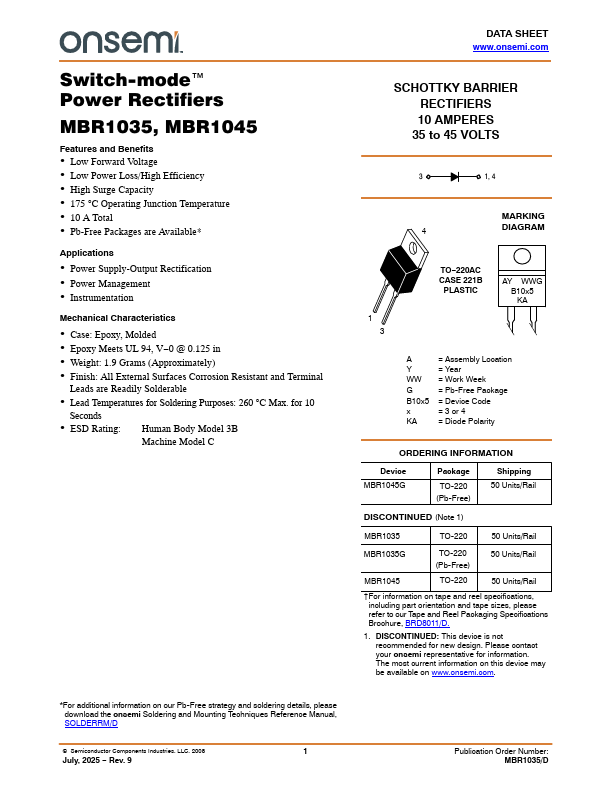

Switch-mode Power Rectifiers MBR1035, MBR1045 Features and Benefits  Low Forward Voltage  Low Power Loss/High Efficiency  High Surge Capacity  175 C Operating Junction Temperature  10 A Total  Pb-Free Packages are Available* Applications  Power Supply-Output Rectification  Power Management  Instrumentation Mechanical Characteristics  Case: Epoxy, Molded  Epoxy Meets UL 94, V−0 @ 0.125 in  Weight: 1.9 Grams (Approximately)  Finish: All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable  Lead Temperatures for Soldering Purposes: 260 C Max. for 10 Seconds  ESD Rating: Human Body Model 3B Machine Model C DATA SHEET www.onsemi.
