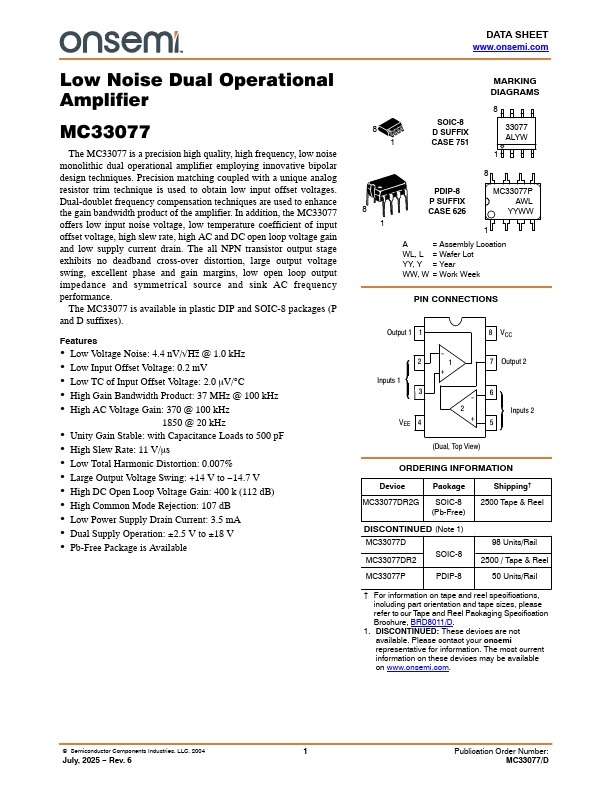

MC33077 Datasheet

Low Noise Dual Operational Amplifier

No Preview Available !

MC33077
Low Noise Dual Operational
Amplifier
The MC33077 is a precision high quality, high frequency, low noise
monolithic dual operational amplifier employing innovative bipolar
design techniques. Precision matching coupled with a unique analog
resistor trim technique is used to obtain low input offset voltages.
Dual−doublet frequency compensation techniques are used to enhance
the gain bandwidth product of the amplifier. In addition, the MC33077
offers low input noise voltage, low temperature coefficient of input
offset voltage, high slew rate, high AC and DC open loop voltage gain
and low supply current drain. The all NPN transistor output stage
exhibits no deadband cross−over distortion, large output voltage
swing, excellent phase and gain margins, low open loop output
impedance and symmetrical source and sink AC frequency
performance.
The MC33077 is available in plastic DIP and SOIC−8 packages (P
and D suffixes).
Features
Low Voltage Noise: 4.4 nV/ǸHz @ 1.0 kHz
Low Input Offset Voltage: 0.2 mV
Low TC of Input Offset Voltage: 2.0 mV/°C
High Gain Bandwidth Product: 37 MHz @ 100 kHz
www.DataSheet4U.com
High AC Voltage Gain: 370 @ 100 kHz
1850 @ 20 kHz
Unity Gain Stable: with Capacitance Loads to 500 pF
High Slew Rate: 11 V/ms
Low Total Harmonic Distortion: 0.007%
Large Output Voltage Swing: +14 V to −14.7 V
High DC Open Loop Voltage Gain: 400 k (112 dB)
High Common Mode Rejection: 107 dB
Low Power Supply Drain Current: 3.5 mA
Dual Supply Operation: ±2.5 V to ±18 V
Pb−Free Package is Available
© Semiconductor Components Industries, LLC, 2004
March, 2004 − Rev. 5
1
http://onsemi.com
8
1
8
1
SOIC−8
D SUFFIX
CASE 751
MARKING
DIAGRAMS
8
33077
ALYW
1
8
PDIP−8
P SUFFIX
CASE 626
MC33077P
AWL
YYWW
1
A = Assembly Location
WL, L = Wafer Lot
YY, Y = Year
WW, W = Work Week
PIN CONNECTIONS
Output 1 1
Inputs 1
2
3
VEE 4
8 VCC
1 7 Output 2
+
6
2
+5
Inputs 2
(Dual, Top View)
ORDERING INFORMATION
Device
Package
Shipping
MC33077D
SOIC−8
98 Units/Rail
MC33077DR2
MC33077DR2G
SOIC−8
SOIC−8
(Pb−Free)
2500 Tape & Reel
2500 Tape & Reel
MC33077P
PDIP−8
50 Units/Rail
†For information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specifications
Brochure, BRD8011/D.
Publication Order Number:
MC33077/D


  ON Semiconductor Electronic Components Datasheet

MC33077 Datasheet

Low Noise Dual Operational Amplifier

No Preview Available !

MC33077
R1 R6
R8 R11
R16 VCC
Q1 Q8
C1
R3
C3
J1 Q6
D3
Q11
R9
Z1
Q13
Q14
D4
Q17
Q19
D6 Q21
R13
Neg Q7 Q9
Q2
Q4 R5 C2
D1
Pos
C6
Q10 Q12
Q16
R14
R17 R18 Vout
D7 R19
C7
Q22
C8
Q1
Q5 R4
R7
R2
D2
R10 R12
D5
R15
Q20 R20
VEE

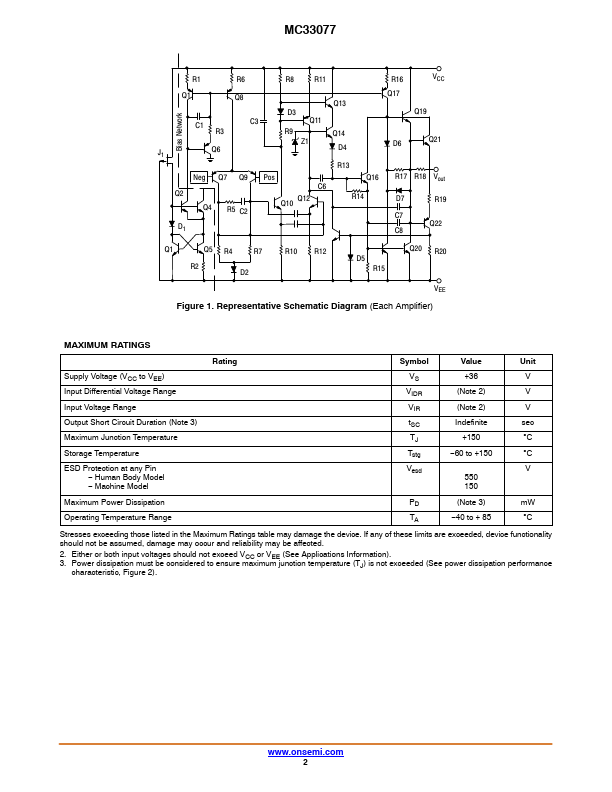

Figure 1. Representative Schematic Diagram (Each Amplifier)
MAXIMUM RATINGS
Rating
Symbol
Value
Unit
Supply Voltage (VCC to VEE)
Input Differential Voltage Range
Input Voltage Range
Output Short Circuit Duration (Note 2)
Maximum Junction Temperature
Storage Temperature
ESD Protection at any Pin
− Human Body Model
− Machine Model
VS
VIDR
VIR
tSC
TJ
Tstg
Vesd
+36
(Note 1)
(Note 1)
Indefinite
+150
−60 to +150
550
150
V
V
V
sec
°C
°C
V
Maximum Power Dissipation
Operating Temperature Range
PD
(Note 2)
mW
TA −40 to + 85 °C
Maximum ratings applied to the device are individual stress limit values (not normal operating conditions) and are not valid simultaneously. If
stress limits are exceeded device functional operation is not implied, damage may occur and reliability may be affected. Functional operation
should be restricted to the Recommended Operating Conditions.
1. Either or both input voltages should not exceed VCC or VEE (See Applications Information).
2. Power dissipation must be considered to ensure maximum junction temperature (TJ) is not exceeded (See power dissipation performance
characteristic, Figure 2).
http://onsemi.com
2
