NCP81105 Datasheet - ON Semiconductor

1/2/3 Phase Power Controller

NCP81105 Features

* Meets Intel’s VR12.5 Specifications

* Implements VR12.6 PS4 State and SVID Reporting

* Mixed Voltage/Current Mode, Dual Edge Modulation for Fastest Initial Response to Transient Loading

* High Impedance Differential Voltage Amplifier

* High Performance Opera

NCP81105 General Description

Pin No. Symbol Description 1 EN Logic input. Logic high enables the NCP81105 and logic low disables it. 2 VCC Power for the internal control circuits. A decoupling capacitor must be connected from this pin to ground. 3 VR_HOT# Open drain (logic level) output for over *temperature rep.

NCP81105 Datasheet (378.12 KB)

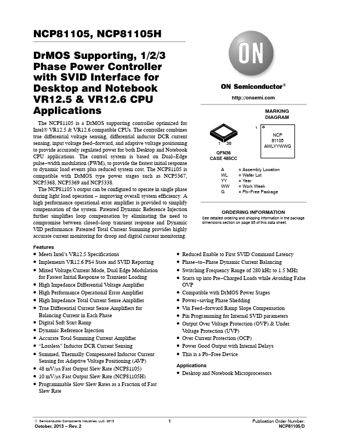

NCP81105 Datasheet Preview — Preview of NCP81105 PDF

Datasheet Details

Part number:

NCP81105

Manufacturer:

ON Semiconductor ↗

File Size:

378.12 KB

Description:

1/2/3 phase power controller.
NCP81105, NCP81105H DrMOS Supporting, 1/2/3 Phase Power Controller with SVID Interface for Desktop and Notebook VR12.5 & VR12.6 CPU Applications The .
