NCP81234 Dual-Channel/Two-Phase Controller

ON Semiconductor

NCP81234 Description

Dual-Channel/Two-Phase Controller for DrMOS NCP81234 The NCP81234, a dual *channel/two *phase synchronous buck controller, provides fle.
Pin Name Type Description 1 VIN Power Input Power Supply Input.

NCP81234 Features

* Single Vin = 4.5 ~ 20 V with Input Feedforward
* Integrated 5.35 V LDO
* Vout = 0.6 V ~ 5.3 V
* Fsw = 200 k ~ 1.2 MHz
* PWM Output Compatible to 3.3 V and 5 V DrMOS
* Dual
* Channel or Two
* Phase Operation
* DDR Power Mode Option

📥 Download Datasheet

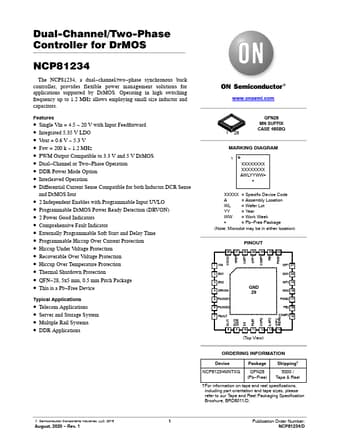

NCP81234 Datasheet Preview — Preview of NCP81234 PDF

Datasheet Details

Part number: NCP81234
Manufacturer: ON Semiconductor ↗
File Size: 333.91 KB
Datasheet: NCP81234-ONSemiconductor.pdf
Description: Dual-Channel/Two-Phase Controller
