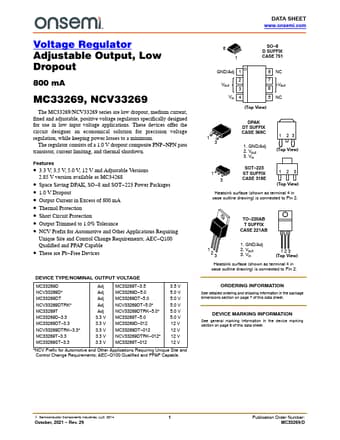

Voltage Regulator Adjustable Output, Low Dropout
800 mA
MC33269, NCV33269
The MC33269/NCV33269 series are low dropout, medium current, fixed and adjustable, positive voltage regulators specifically designed for use in low input voltage applications. These devices offer the circuit designer an economical solution for precision voltage regulation, while keeping power losses to a minimum.
The regulator consists of a 1.0 V dropout composite PNP−NPN pass transistor, current limiting, and thermal shutdown.
Features
• 3.3 V, 3.5 V, 5.0 V, 12 V and Adjustable Versions
2.85 V version available as MC34268
• Space Saving DPAK, SO−8 and SOT−223 Power Packages • 1.0 V Dropout • Output Current in Excess of 800 mA • Thermal Protection • Short Circuit Protection • Output Trimmed to 1.
