SA11CA, SA10CA Zener Transient Voltage Suppressors

SA11CA Description

SA5.0CA Series 500 Watt Peak Power MiniMOSORB™ Zener Transient Voltage Suppressors Bidirectional * The SA5.0CA series is designed to protect volta.

SA11CA Features

* Working Peak Reverse Voltage Range
* 5.0 to 170 V
* Peak Power
* 500 Watts @ 1 ms
* ESD Rating of Class 3 (>16 KV) per Human Body Model
* Maximum Clamp Voltage @ Peak Pulse Current
* Low Leakage < 1 mA above 8.5 V
* UL 497B for Isola

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SA11CA, SA10CA. Please refer to the document for exact specifications by model.

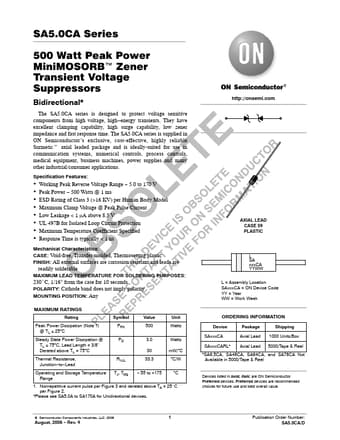

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SA11CA, SA10CA
Manufacturer
ON Semiconductor ↗
File Size
170.04 KB
Datasheet
SA10CA-ONSemiconductor.pdf
Description
Zener Transient Voltage Suppressors
Note
This datasheet PDF includes multiple part numbers: SA11CA, SA10CA.
Please refer to the document for exact specifications by model.
